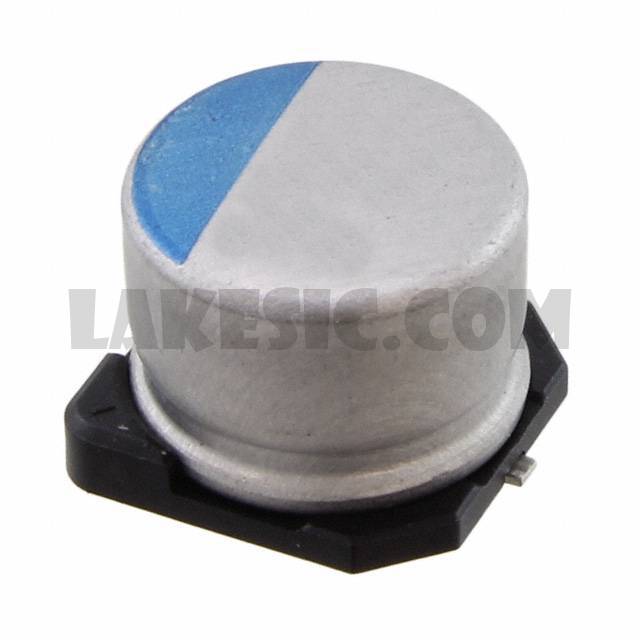

PCX1E820MCL1GS


PCX1E820MCL1GS

Part NumberPCX1E820MCL1GS

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

PCX1E820MCL1GS - Product Attributes

Categories Capacitors / Aluminum - Polymer Capacitors
Datasheet
Standard Package1
ManufacturerNichicon
SeriesPCX
PackagingCut Tape (CT)
Part StatusActive
TypePolymer
Capacitance82µF
Tolerance±20%
Voltage - Rated25V
ESR (Equivalent Series Resistance)36mOhm
Lifetime @ Temp.3000 Hrs @ 125°C
Operating Temperature-55°C ~ 125°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ High Frequency1.8A @ 100kHz
Lead Spacing-
Size / Dimension0.394" Dia (10.00mm)
Height - Seated (Max)0.315" (8.00mm)
Surface Mount Land Size0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
