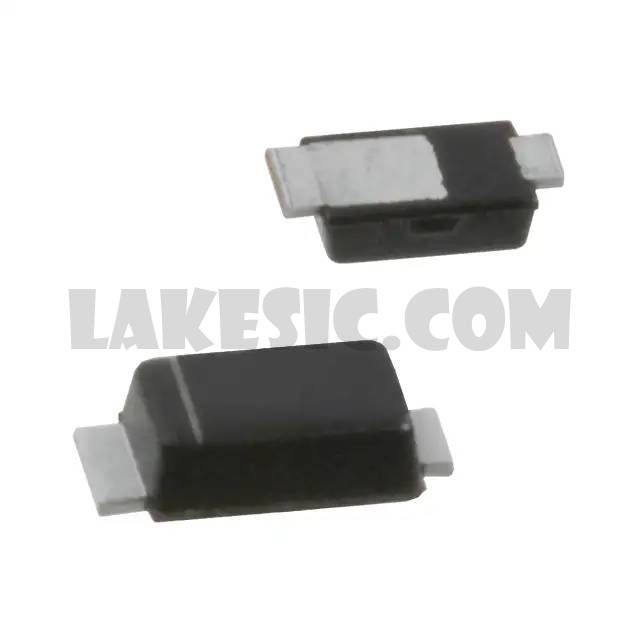

PD3S130LQ-7

PD3S130LQ-7

Part NumberPD3S130LQ-7

ManufacturerDiodes Incorporated

DescriptionDIODE SCHOTTKY 30V 1A POWERDI323

DatasheetPD3S130LQ

Package / CasePowerDI™ 323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 1A Surface Mount PowerDI™ 323

To learn about the specification of PD3S130LQ-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PD3S130LQ-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PD3S130LQ-7.
We are offering PD3S130LQ-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PD3S130LQ-7 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	PD3S130LQ
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	420mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1.5mA @ 30V
Capacitance @ Vr, F	40pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	PowerDI™ 323
Supplier Device Package	PowerDI™ 323
Operating Temperature - Junction	-65°C ~ 150°C
