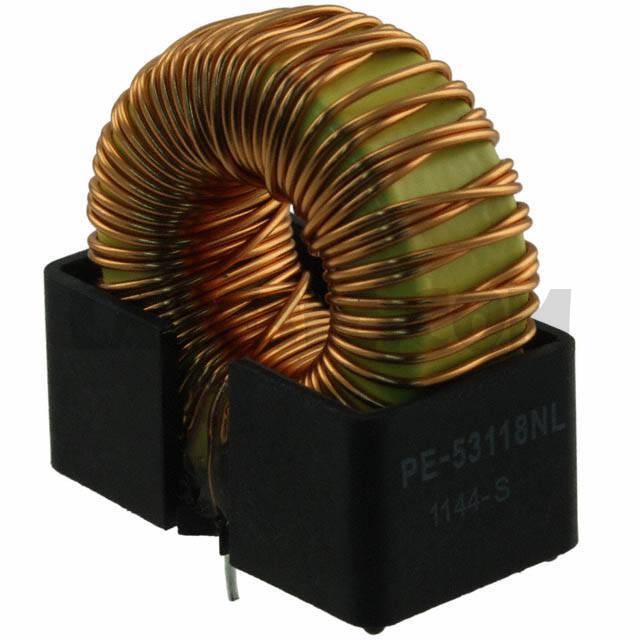

PE-53118NL


PE-53118NL

Part NumberPE-53118NL

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

PE-53118NL - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package35
ManufacturerPulse Electronics Power
Series-
PackagingTray
Part StatusActive
TypeToroidal
Material - Core-
Inductance470µH
Tolerance±20%
Current Rating (Amps)2A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)170mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 130°C
Features-
Mounting TypeThrough Hole
Package / CaseRadial, Vertical (Open)
Supplier Device Package-
Size / Dimension1.300" L x 0.700" W (33.02mm x 17.78mm)
Height - Seated (Max)1.400" (35.56mm)
