PE-53683NL
PE-53683NL

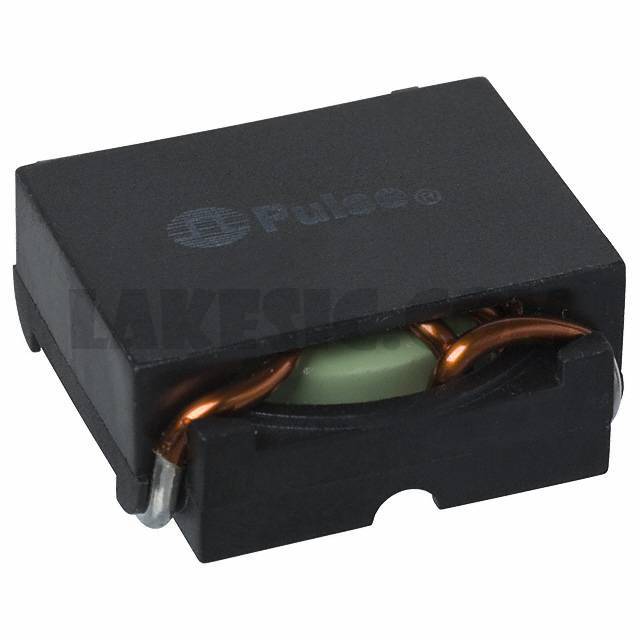

Part Number PE-53683NL Description FIXED IND 9.4UH 10.9A 12.3 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 9.4µH Unshielded Toroidal Inductor 10.9A 12.3mOhm Max Nonstandard
To learn about the specification of PE-53683NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-53683NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-53683NL.
We are offering PE-53683NL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PE-53683NL - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet Toroid-SLIC Series Datasheet Standard Package 70 Manufacturer Pulse Electronics Power Series SLIC Packaging Bulk Part Status Active Type Toroidal Material - Core - Inductance 9.4µH Tolerance - Current Rating (Amps) 10.9A Current - Saturation - Shielding Unshielded DC Resistance (DCR) 12.3mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 130°C Features - Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.940" L x 0.940" W (23.88mm x 23.88mm) Height - Seated (Max) 0.390" (9.91mm)
