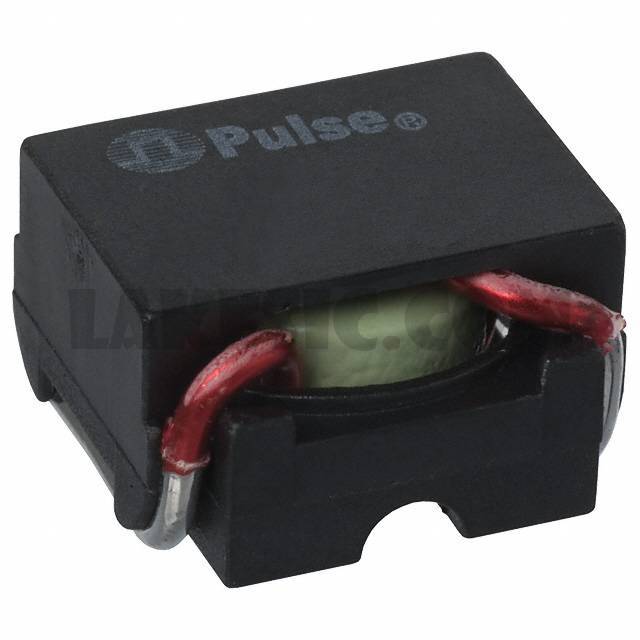

PE-53690NL

Part NumberPE-53690NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 810NH 14.3A 2.5 MOHM

DatasheetToroid-SLIC Series Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description810nH Unshielded Toroidal Inductor 14.3A 2.5mOhm Max Nonstandard

To learn about the specification of PE-53690NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-53690NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-53690NL.
We are offering PE-53690NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-53690NL - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

Toroid-SLIC Series Datasheet

Standard Package

Manufacturer

Pulse Electronics Power

Series

SLIC

Packaging

Tube

Part Status

Active

Type

Toroidal

Material - Core

Inductance

810nH

Tolerance

Current Rating (Amps)

14.3A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

2.5mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.620" L x 0.605" W (15.75mm x 15.37mm)

Height - Seated (Max)

0.370" (9.40mm)
