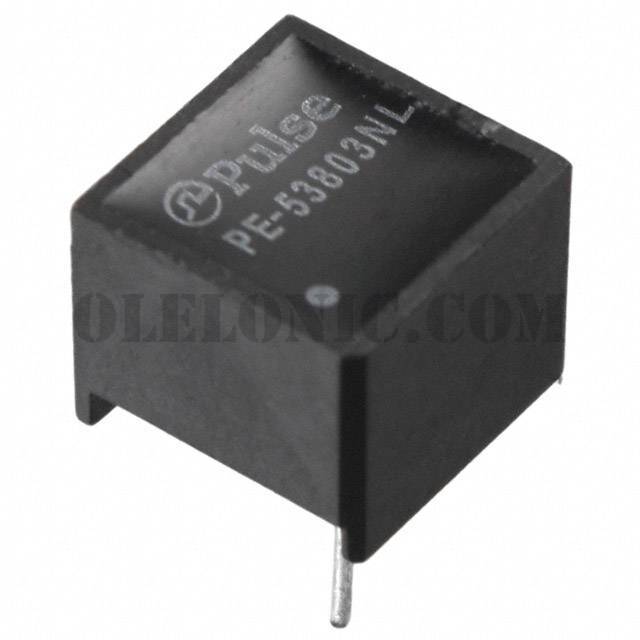

PE-53803NL

Part NumberPE-53803NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 118UH 200MA 1.8 OHM TH

DatasheetTHT/SMT Power Inductors - Toroid, Simple Switcher

Package / CaseRadial, Vertical - Corner Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description118µH Shielded Toroidal Inductor 200mA 1.8Ohm Radial, Vertical - Corner Terminals

To learn about the specification of PE-53803NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-53803NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-53803NL.
We are offering PE-53803NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-53803NL - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

THT/SMT Power Inductors - Toroid, Simple Switcher

Standard Package

Manufacturer

Pulse Electronics Power

Series

Packaging

Tray

Part Status

Active

Type

Toroidal

Material - Core

Inductance

118µH

Tolerance

±20%

Current Rating (Amps)

200mA

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

1.8Ohm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Features

Mounting Type

Through Hole

Package / Case

Radial, Vertical - Corner Terminals

Supplier Device Package

Size / Dimension

0.360" L x 0.360" W (9.14mm x 9.14mm)

Height - Seated (Max)

0.310" (7.87mm)
