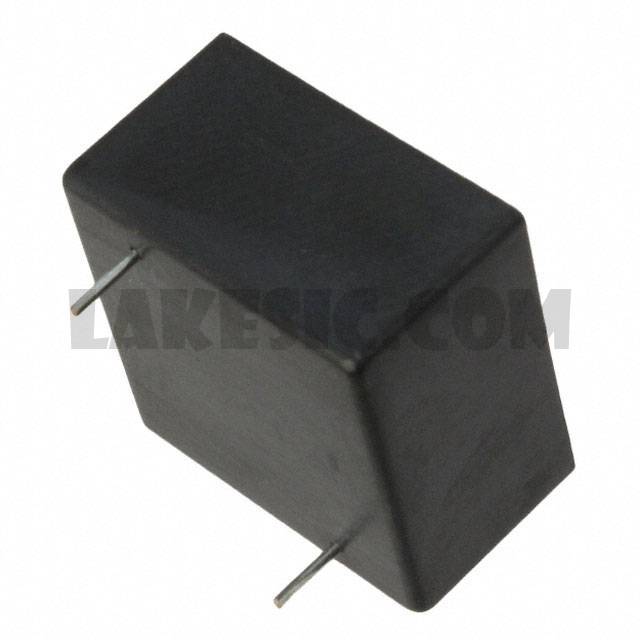

PE-53830NL

Part NumberPE-53830NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 77UH 1.54A 200 MOHM TH

DatasheetTHT/SMT Power Inductors - Toroid, Simple Switcher

Package / CaseRadial, Vertical - Corner Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description77µH Shielded Toroidal Inductor 1.54A 200mOhm Radial, Vertical - Corner Terminals

To learn about the specification of PE-53830NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-53830NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-53830NL.
We are offering PE-53830NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-53830NL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	THT/SMT Power Inductors - Toroid, Simple Switcher
Standard Package	30
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tube
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	77µH
Tolerance	±20%
Current Rating (Amps)	1.54A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	200mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical - Corner Terminals
Supplier Device Package	-
Size / Dimension	0.635" L x 0.635" W (16.13mm x 16.13mm)
Height - Seated (Max)	0.365" (9.27mm)
