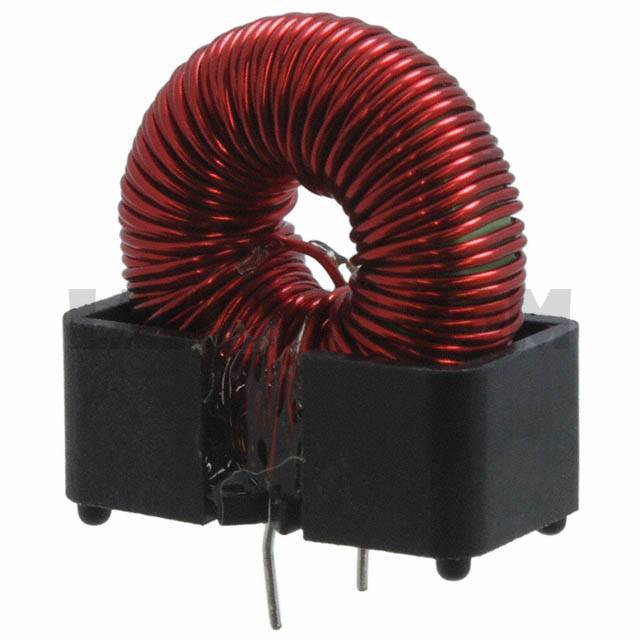

PE-54036NL

PE-54036NL

Part NumberPE-54036NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 168UH 1.81A 180 MOHM

DatasheetTHT/SMT Power Inductors - Toroid, Simple Switcher

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description168µH Shielded Toroidal Inductor 1.81A 180mOhm Radial, Vertical (Open)

To learn about the specification of PE-54036NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-54036NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-54036NL.
We are offering PE-54036NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-54036NL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	THT/SMT Power Inductors - Toroid, Simple Switcher
Standard Package	55
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tray
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	168µH
Tolerance	±20%
Current Rating (Amps)	1.81A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	180mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Inductance Frequency - Test	20kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	-
Size / Dimension	0.830" L x 0.450" W (21.09mm x 11.43mm)
Height - Seated (Max)	0.950" (24.13mm)
