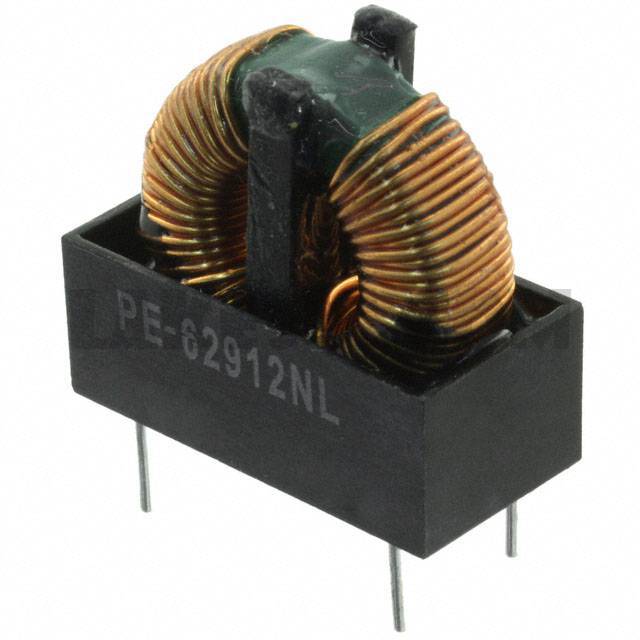

PE-62912NL

Part NumberPE-62912NL

ManufacturerPulse Electronics Power

DescriptionCMC 3MH 3.5A 2LN TH

DatasheetPE-62xxx Common Mode EMI Suppression Inductors

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3mH @ 1kHz 2 Line Common Mode Choke Through Hole 3.5A DCR 60mOhm

To learn about the specification of PE-62912NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-62912NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-62912NL.
We are offering PE-62912NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-62912NL - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	PE-62xxx Common Mode EMI Suppression Inductors
Standard Package	30
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tray
Part Status	Active
Filter Type	-
Number of Lines	2
Inductance @ Frequency	3mH @ 1kHz
Current Rating (Max)	3.5A
DC Resistance (DCR) (Max)	60mOhm
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.150" L x 0.560" W (29.21mm x 14.22mm)
Height (Max)	1.160" (29.46mm)
Package / Case	Vertical, 4 PC Pin
