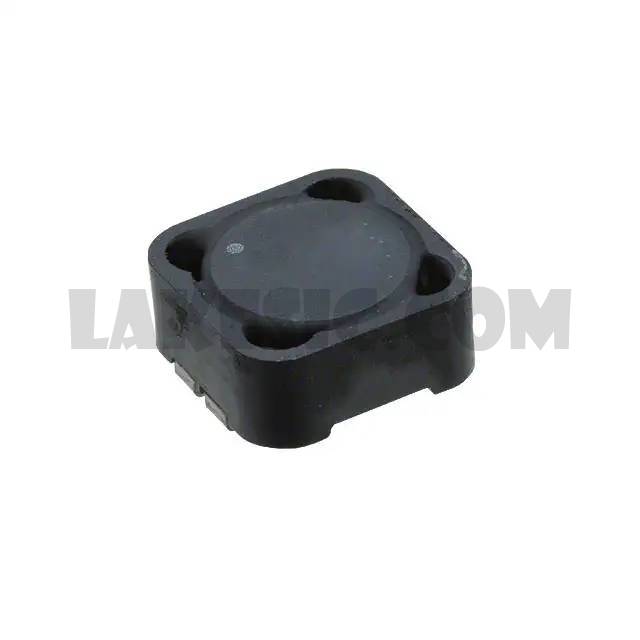

PF0552.824NLT

Part NumberPF0552.824NLT

ManufacturerPulse Electronics Power

DescriptionINDUCT ARRAY 2 COIL 830UH SMD

DatasheetPF0552NL, PF0553NL Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 3.3mH Inductance - Connected in Series 830µH Inductance - Connected in Parallel 1.4Ohm Max DC Resistance (DCR) - Parallel 690mA Nonstandard

To learn about the specification of PF0552.824NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PF0552.824NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PF0552.824NLT.
We are offering PF0552.824NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PF0552.824NLT - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

PF0552NL, PF0553NL Series

Standard Package

500

Manufacturer

Pulse Electronics Power

Series

PF0552NL

Packaging

Tape & Reel (TR)

Part Status

Active

Number of Coils

Inductance - Connected In Parallel

830µH

Inductance - Connected In Series

3.3mH

Tolerance

±20%

Current Rating - Parallel

690mA

Current Rating - Series

340mA

Current Saturation - Parallel

780mA

Current Saturation - Series

390mA

DC Resistance (DCR) - Parallel

1.4Ohm Max

DC Resistance (DCR) - Series

5.5Ohm Max

Shielding

Shielded

Ratings

Operating Temperature

-40°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.492" L x 0.492" W (12.50mm x 12.50mm)

Height

0.236" (6.00mm)
