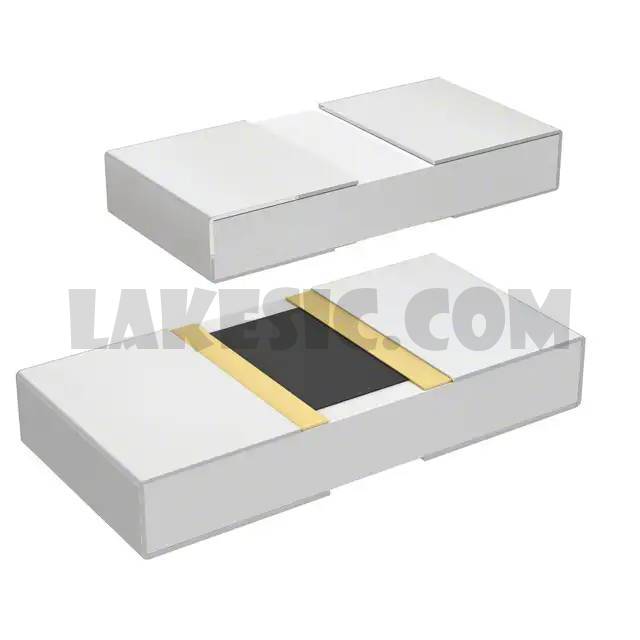

PHP00805E2002BST1

Part NumberPHP00805E2002BST1

ManufacturerVishay Thin Film

DescriptionRES SMD 20K OHM 0.1% 5/8W 0805

DatasheetPHP Series

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description20 kOhms ±0.1% 0.63W, 5/8W Chip Resistor 0805 (2012 Metric) Flame Proof, Moisture Resistant, Safety Thin Film

To learn about the specification of PHP00805E2002BST1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PHP00805E2002BST1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PHP00805E2002BST1.
We are offering PHP00805E2002BST1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PHP00805E2002BST1 - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	PHP Series
Standard Package	1
Manufacturer	Vishay Thin Film
Series	PHP
Packaging	Cut Tape (CT)
Part Status	Active
Resistance	20 kOhms
Tolerance	±0.1%
Power (Watts)	0.63W, 5/8W
Composition	Thin Film
Features	Flame Proof, Moisture Resistant, Safety
Temperature Coefficient	±25ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805
Size / Dimension	0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max)	0.033" (0.84mm)
Number of Terminations	2
Failure Rate	-
