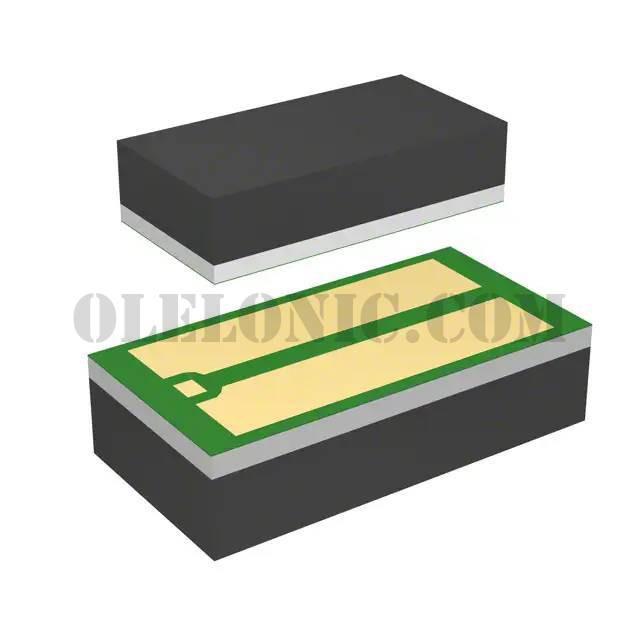

PI5101-01-LGIZ

Part NumberPI5101-01-LGIZ

ManufacturerVicor Corporation

DescriptionMOSFET N-CH 5V 60A 3LGA

DatasheetPI5101 Series

Package / Case3-FLGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 5V 60A (Ta) 3.1W (Ta) Surface Mount 3-LGA (4.1x8)

To learn about the specification of PI5101-01-LGIZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PI5101-01-LGIZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PI5101-01-LGIZ.
We are offering PI5101-01-LGIZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PI5101-01-LGIZ - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

PI5101 Series

Standard Package

Manufacturer

Vicor Corporation

Series

Picor® µRDS(on)FET®

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

Current - Continuous Drain (Id) @ 25°C

60A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

3.5V, 4.5V

Rds On (Max) @ Id, Vgs

0.45mOhm @ 60A, 4.5V

Vgs(th) (Max) @ Id

800mV @ 1mA

Gate Charge (Qg) (Max) @ Vgs

65nC @ 4.5V

Vgs (Max)

±5V

Input Capacitance (Ciss) (Max) @ Vds

7600pF @ 5V

FET Feature

Power Dissipation (Max)

3.1W (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

3-LGA (4.1x8)

Package / Case

3-FLGA
