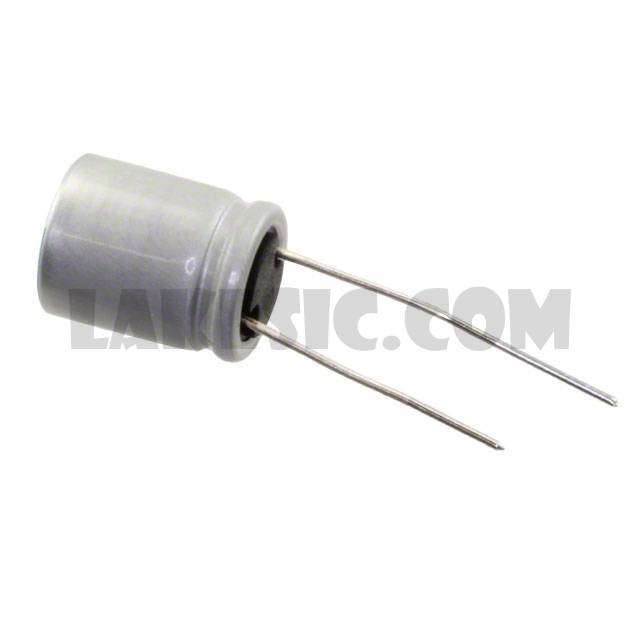

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLF Series
Standard Package	1
Manufacturer	Nichicon
Series	PLF
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	7mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	5.9A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLF1A561MDO1TD	Nichicon, 560µF 10V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1C271MDO1TD	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, PLF	View
PLF0J471MDO1TD	Nichicon, 470µF 6.3V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E821MCO8TD	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1C181MDO1TD	Nichicon, 180µF 16V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E681MCO6TD	Nichicon, 680µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0J331MDL4TD	Nichicon, 330µF 6.3V Aluminum Polymer Capacitor Radial, Can 24mOhm 2000 Hrs @ 105°C, PLF	View
PLF0G561MDO1TD	Nichicon, 560µF 4V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E561MCO8TD	Nichicon, 560µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E102MDO1	Nichicon, 1000µF 2.5V Aluminum Polymer Capacitor Radial, Can 6mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E331MCO8TD	Nichicon, 330µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E391MDL4	Nichicon, 390µF 2.5V Aluminum Polymer Capacitor Radial, Can 20mOhm 2000 Hrs @ 105°C, PLF	View

PLF1A561MDO1TD

Part NumberPLF1A561MDO1TD
