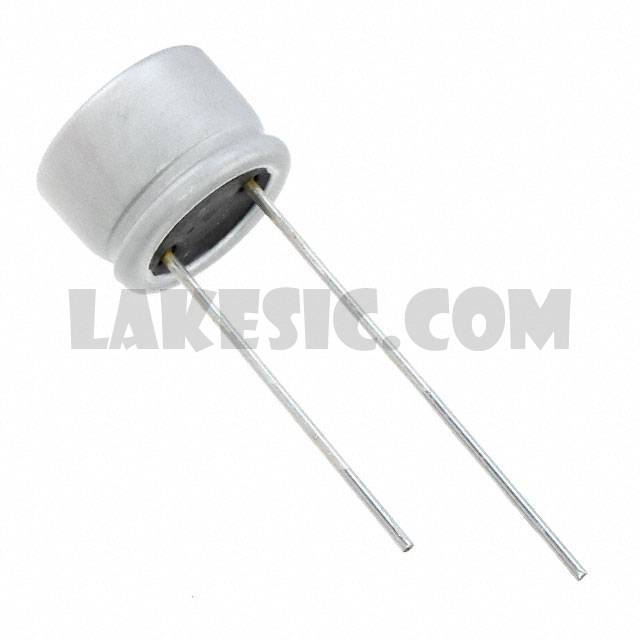

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLF Series
Standard Package	1
Manufacturer	Nichicon
Series	PLF
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	120µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	35mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2.8A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLF0E821MCO8	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0J471MCO6TD	Nichicon, 470µF 6.3V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0J681MDO1TD	Nichicon, 680µF 6.3V Aluminum Polymer Capacitor Radial, Can 6mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E152MDO1TD	Nichicon, 1500µF 2.5V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E821MCO6TD	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E100MCL2TP	Nichicon, 10µF 25V Aluminum Polymer Capacitor Radial, Can 60mOhm 2000 Hrs @ 105°C, PLF	View
PLF1A681MDO1	Nichicon, 680µF 10V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1A680MDL4TD	Nichicon, 68µF 10V Aluminum Polymer Capacitor Radial, Can 25mOhm 2000 Hrs @ 105°C, PLF	View
PLF1C271MDO1	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, PLF	View
PLF0G561MDO1TD	Nichicon, 560µF 4V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1C471MDO1TD	Nichicon, 470µF 16V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, PLF	View
PLF0G561MDO1	Nichicon, 560µF 4V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View

PLF1D121MCL2TD

Part NumberPLF1D121MCL2TD
