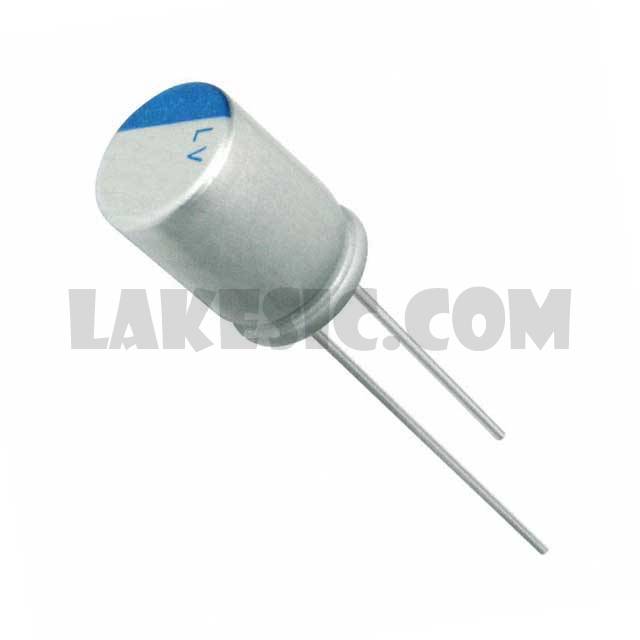

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLV Series
Standard Package	200
Manufacturer	Nichicon
Series	PLV
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	26mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2.4A @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
