Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLV Series
Standard Package	500
Manufacturer	Nichicon
Series	PLV
Packaging	Tape & Box (TB)
Part Status	Active
Type	Polymer
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	29mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2.6A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLV2A100MDL1	Nichicon, 10µF 100V Aluminum Polymer Capacitor Radial, Can 42mOhm 3000 Hrs @ 105°C, PLV	View
PLV1K220MDL1TD	Nichicon, 22µF 80V Aluminum Polymer Capacitor Radial, Can 3000 Hrs @ 105°C, PLV	View
PLV1J220MCL1	Nichicon, 22µF 63V Aluminum Polymer Capacitor Radial, Can 35mOhm 3000 Hrs @ 105°C, PLV	View
PLV2A180MDL1TD	Nichicon, 18µF 100V Aluminum Polymer Capacitor Radial, Can 3000 Hrs @ 105°C, PLV	View
PLV1K100MCL1TD	Nichicon, 10µF 80V Aluminum Polymer Capacitor Radial, Can 3000 Hrs @ 105°C, PLV	View
PLV1C271MDL1TD	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 24mOhm 3000 Hrs @ 105°C, PLV	View
PLV1D331MDL1TD	Nichicon, 330µF 20V Aluminum Polymer Capacitor Radial, Can 24mOhm 3000 Hrs @ 105°C, PLV	View
PLV1K120MDL1TD	Nichicon, 12µF 80V Aluminum Polymer Capacitor Radial, Can 3000 Hrs @ 105°C, PLV	View
PLV1H390MDL1	Nichicon, 39µF 50V Aluminum Polymer Capacitor Radial, Can 29mOhm 3000 Hrs @ 105°C, PLV	View
PLV1D331MDL1	Nichicon, 330µF 20V Aluminum Polymer Capacitor Radial, Can 24mOhm 3000 Hrs @ 105°C, PLV	View
PLV1D331MDL1TD	Nichicon, 330µF 20V Aluminum Polymer Capacitor Radial, Can 24mOhm 3000 Hrs @ 105°C, PLV	View
PLV1V820MDL1TD	Nichicon, 82µF 35V Aluminum Polymer Capacitor Radial, Can 27mOhm 3000 Hrs @ 105°C, PLV	View

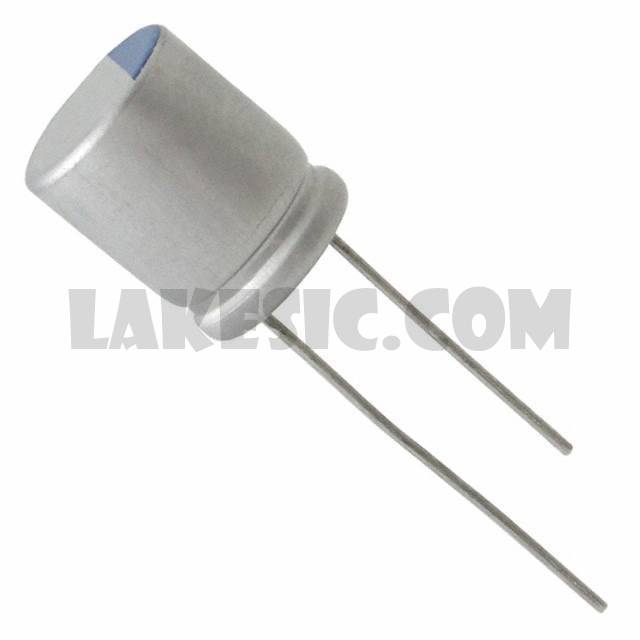

PLV1J470MDL1TD

Part NumberPLV1J470MDL1TD
