PM2207.102NLT
PM2207.102NLT

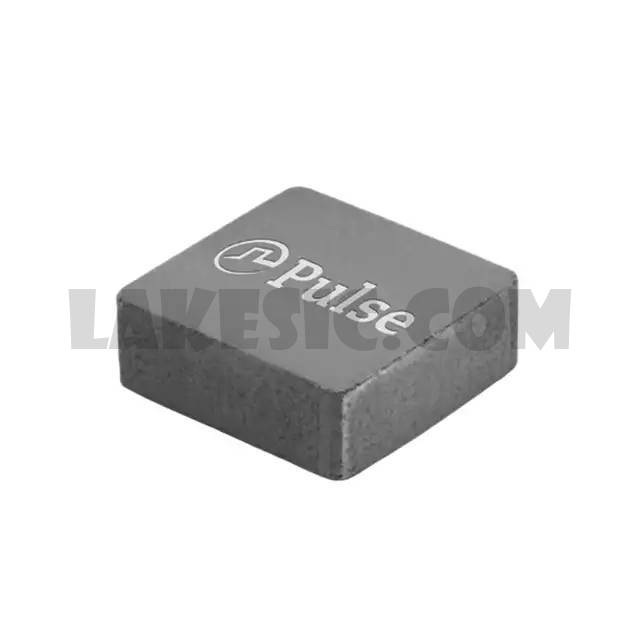

Part Number PM2207.102NLT Description FIXED IND 1UH 21.8A 5MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1µH Unshielded Inductor 21.8A 4.55mOhm Max Nonstandard
To learn about the specification of PM2207.102NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PM2207.102NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PM2207.102NLT.
We are offering PM2207.102NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PM2207.102NLT - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet PA5007, PM2207 Series Datasheet Standard Package 1 Manufacturer Pulse Electronics Power Series PM2207.XXXNLT Packaging Cut Tape (CT) Part Status Active Type - Material - Core - Inductance 1µH Tolerance ±20% Current Rating (Amps) 21.8A Current - Saturation 30A Shielding Unshielded DC Resistance (DCR) 4.55mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings AEC-Q200 Operating Temperature -55°C ~ 155°C Inductance Frequency - Test 100kHz Features - Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package SMD Size / Dimension 0.307" L x 0.299" W (7.80mm x 7.60mm) Height - Seated (Max) 0.122" (3.10mm)
