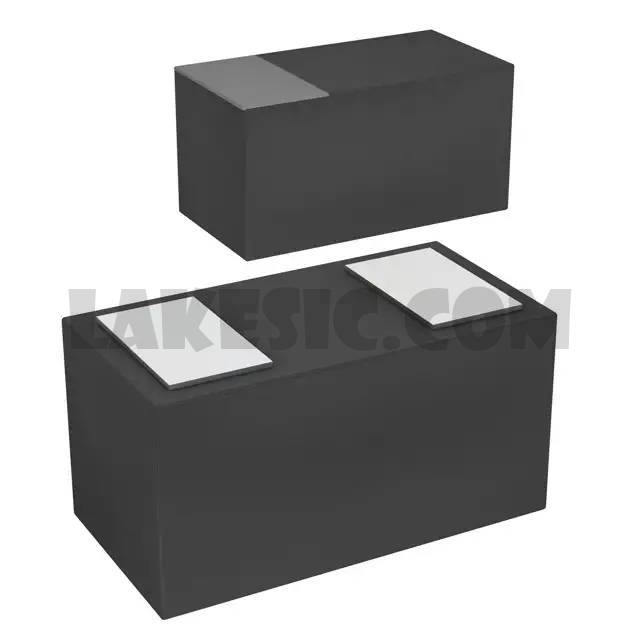

PMEG2005AESFYL

PMEG2005AESFYL

Part NumberPMEG2005AESFYL

ManufacturerNexperia USA Inc.

DescriptionDIODE SCHOTTKY 20V 0.5A SOD962

DatasheetPMEG2005AESF

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 20V 500mA Surface Mount DSN0603-2

To learn about the specification of PMEG2005AESFYL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMEG2005AESFYL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMEG2005AESFYL.
We are offering PMEG2005AESFYL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMEG2005AESFYL - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	PMEG2005AESF
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	550mV @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	1.9ns
Current - Reverse Leakage @ Vr	45µA @ 20V
Capacitance @ Vr, F	25pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	DSN0603-2
Operating Temperature - Junction	150°C (Max)
