PMEG2015EPK,315

PMEG2015EPK,315

Part NumberPMEG2015EPK,315

ManufacturerNexperia USA Inc.

DescriptionDIODE SCHOTTKY 20V 1.5A 2DFN

DatasheetPMEG2015EPK

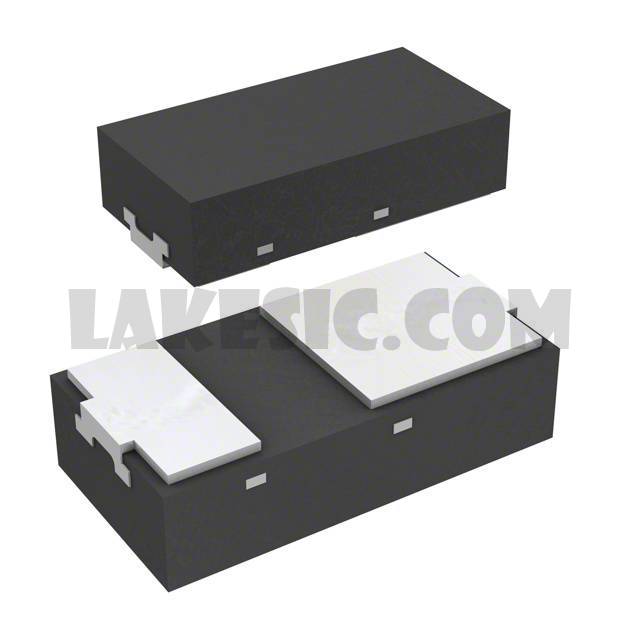

Package / Case2-XDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 20V 1.5A Surface Mount DFN1608D-2

To learn about the specification of PMEG2015EPK,315, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMEG2015EPK,315 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMEG2015EPK,315.
We are offering PMEG2015EPK,315 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMEG2015EPK,315 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	PMEG2015EPK
Standard Package	8000
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	1.5A
Voltage - Forward (Vf) (Max) @ If	420mV @ 1.5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	350µA @ 10V
Capacitance @ Vr, F	120pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-XDFN
Supplier Device Package	DFN1608D-2
Operating Temperature - Junction	150°C (Max)
Base Part Number	PMEG2015
