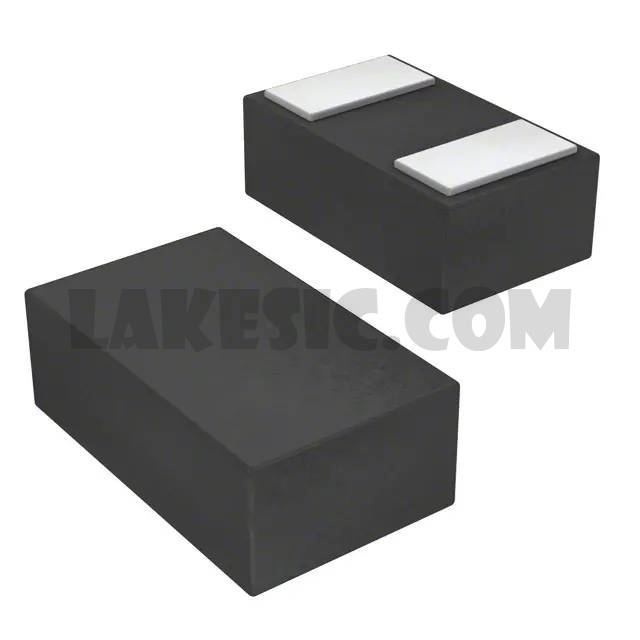

PMEG4010ESBYL

PMEG4010ESBYL

Part NumberPMEG4010ESBYL

ManufacturerNexperia USA Inc.

DescriptionDIODE SCHOTTKY 40V 1A DSN1006-2

DatasheetPMEG4010ESB

Package / Case2-XDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 1A Surface Mount DSN1006-2

To learn about the specification of PMEG4010ESBYL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMEG4010ESBYL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMEG4010ESBYL.
We are offering PMEG4010ESBYL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMEG4010ESBYL - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	PMEG4010ESB
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	610mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2.9ns
Current - Reverse Leakage @ Vr	40µA @ 40V
Capacitance @ Vr, F	22pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-XDFN
Supplier Device Package	DSN1006-2
Operating Temperature - Junction	150°C (Max)
