PMEG6002ELDYL


PMEG6002ELDYL

Part NumberPMEG6002ELDYL

Manufacturer

Description

Datasheet

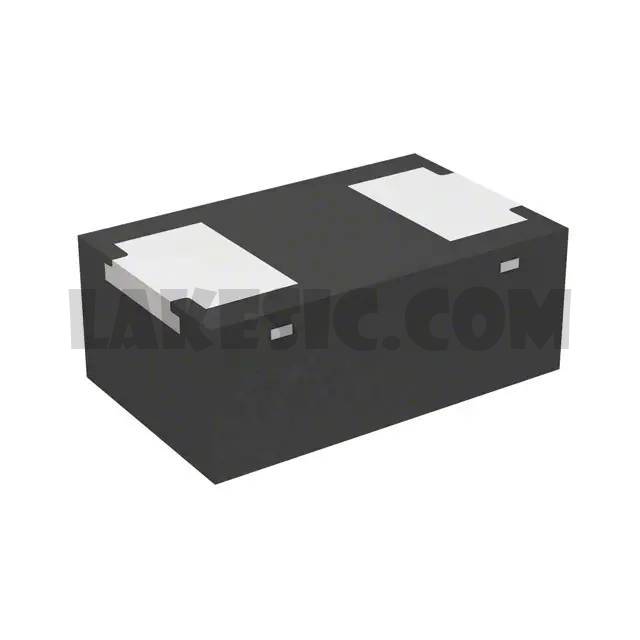

Package / Case2-XDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

PMEG6002ELDYL - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package10000
ManufacturerNexperia USA Inc.
Series-
PackagingTape & Reel (TR)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)60V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If600mV @ 200mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4.5ns
Current - Reverse Leakage @ Vr100µA @ 60V
Capacitance @ Vr, F20pF @ 1V, 1MHz
Mounting TypeSurface Mount
Package / Case2-XDFN
Supplier Device PackageDFN1006D-2
Operating Temperature - Junction150°C (Max)
Base Part NumberPMEG6002
