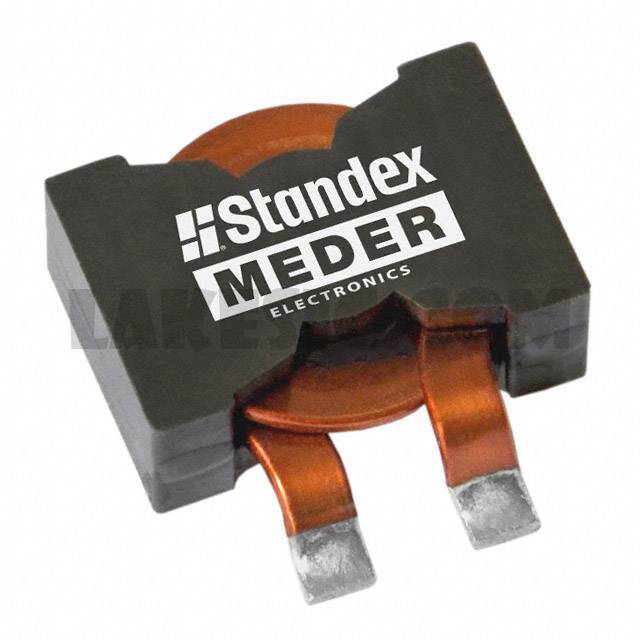

PQ2006-1R0-30-G

Part NumberPQ2006-1R0-30-G

ManufacturerStandex-Meder Electronics

DescriptionFIXED IND 1UH 30A 1 MOHM SMD

DatasheetPQ20,26,32 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1µH Unshielded Planar Inductor 30A 1mOhm Nonstandard

To learn about the specification of PQ2006-1R0-30-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PQ2006-1R0-30-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PQ2006-1R0-30-G.
We are offering PQ2006-1R0-30-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PQ2006-1R0-30-G - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PQ20,26,32 Series

Standard Package

Manufacturer

Standex-Meder Electronics

Series

Packaging

Bulk

Part Status

Obsolete

Type

Planar

Material - Core

Ferrite

Inductance

1µH

Tolerance

Current Rating (Amps)

30A

Current - Saturation

39A

Shielding

Unshielded

DC Resistance (DCR)

1mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-30°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.837" L x 0.551" W (21.25mm x 14.00mm)

Height - Seated (Max)

0.286" (7.26mm)
