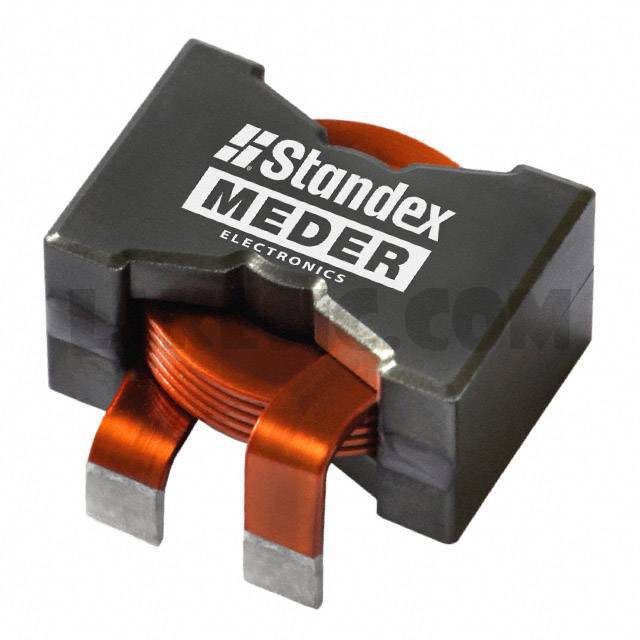

PQ2613-1R0-80-G

Part NumberPQ2613-1R0-80-G

ManufacturerStandex-Meder Electronics

DescriptionFIXED IND 1UH 80A 1.2 MOHM SMD

DatasheetPQ20,26,32 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1µH Unshielded Planar Inductor 80A 1.2mOhm Nonstandard

To learn about the specification of PQ2613-1R0-80-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PQ2613-1R0-80-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PQ2613-1R0-80-G.
We are offering PQ2613-1R0-80-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PQ2613-1R0-80-G - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PQ20,26,32 Series

Standard Package

Manufacturer

Standex-Meder Electronics

Series

Packaging

Bulk

Part Status

Obsolete

Type

Planar

Material - Core

Ferrite

Inductance

1µH

Tolerance

Current Rating (Amps)

80A

Current - Saturation

120A

Shielding

Unshielded

DC Resistance (DCR)

1.2mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-30°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

1.043" L x 0.748" W (26.50mm x 19.00mm)

Height - Seated (Max)

0.520" (13.20mm)
