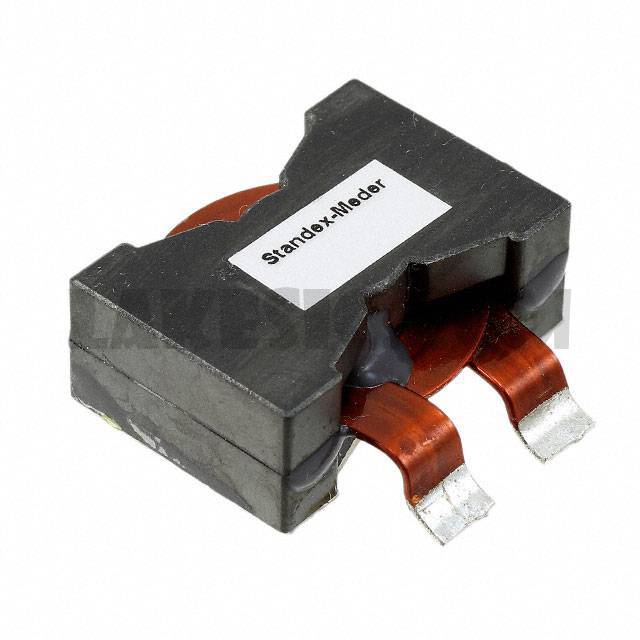

PQ3213-0R9-70-G

Part NumberPQ3213-0R9-70-G

ManufacturerStandex-Meder Electronics

DescriptionFIXED IND 900NH 70A 1 MOHM SMD

DatasheetPQ20,26,32 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description900nH Unshielded Planar Inductor 70A 1mOhm Nonstandard

To learn about the specification of PQ3213-0R9-70-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PQ3213-0R9-70-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PQ3213-0R9-70-G.
We are offering PQ3213-0R9-70-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PQ3213-0R9-70-G - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PQ20,26,32 Series

Standard Package

Manufacturer

Standex-Meder Electronics

Series

Packaging

Bulk

Part Status

Obsolete

Type

Planar

Material - Core

Ferrite

Inductance

900nH

Tolerance

Current Rating (Amps)

70A

Current - Saturation

110A

Shielding

Unshielded

DC Resistance (DCR)

1mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-30°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

1.043" L x 0.748" W (26.50mm x 19.00mm)

Height - Seated (Max)

0.520" (13.20mm)
