PZTA44-TP

PZTA44-TP

Part NumberPZTA44-TP

ManufacturerMicro Commercial Co

DescriptionNPNGENERALPURPOSEAMPLIFIERSOT-22

DatasheetPZTA44

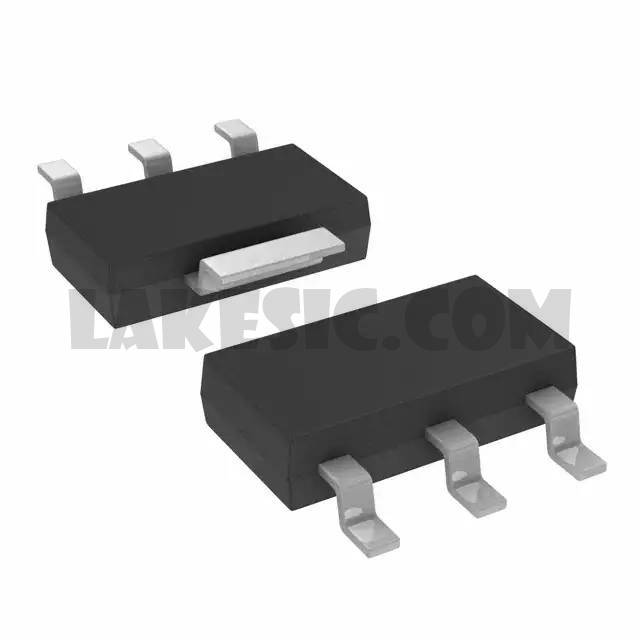

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 400V 200mA 20MHz 1W Surface Mount SOT-223

To learn about the specification of PZTA44-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PZTA44-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PZTA44-TP.
We are offering PZTA44-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PZTA44-TP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	PZTA44
Standard Package	2500
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	200mA
Voltage - Collector Emitter Breakdown (Max)	400V
Vce Saturation (Max) @ Ib, Ic	750mV @ 5mA, 50mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 10mA, 10V
Power - Max	1W
Frequency - Transition	20MHz
Operating Temperature	125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223
