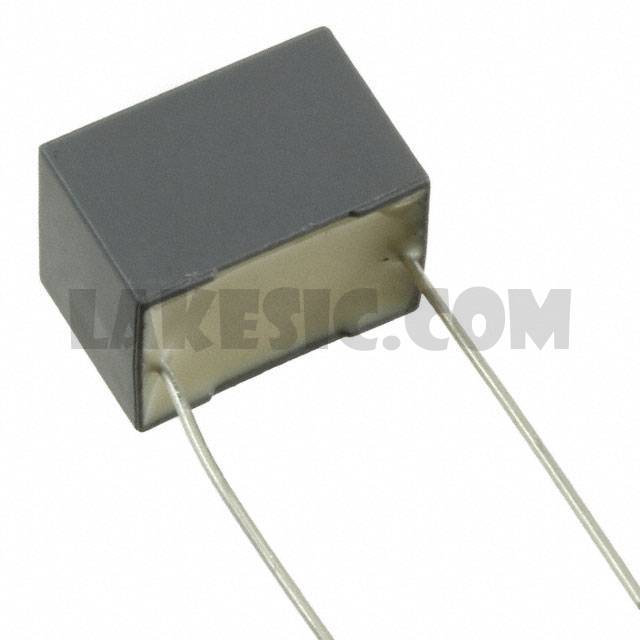

Categories	Capacitors / Film Capacitors
Datasheet	R75 Series Automotive
Standard Package	500
Manufacturer	KEMET
Series	R75
Packaging	Bulk
Part Status	Active
Capacitance	1µF
Tolerance	±5%
Voltage Rating - AC	160V
Voltage Rating - DC	250V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.512" W (18.00mm x 13.00mm)
Height - Seated (Max)	0.476" (12.10mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R75GN41004000J	KEMET, 1µF Film Capacitor 90V 160V Polypropylene (PP), Metallized Radial, R75	View
R75RI22705030M	KEMET, 0.027µF Film Capacitor 600V 1250V (1.25kV) Polypropylene (PP), Metallized Radial, R75	View
R75TN24704030J	KEMET, 0.047µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75UR32204040J	KEMET, 0.22µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R75	View
R75TR32204040J	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75PN32204030J	KEMET, 0.22µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75MF25604030J	KEMET, 0.056µF Film Capacitor 200V 400V Polypropylene (PP), Metallized Radial, R75	View
R75PI3220ZA40K	KEMET, 0.22µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75TI22204030J	KEMET, 0.022µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75QN3100AA00K	KEMET, 0.1µF Film Capacitor 250V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75UR24704030J	KEMET, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R75	View
R75PI26804030J	KEMET, 0.068µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View

R75II41004040J

Part NumberR75II41004040J
