Categories	Capacitors / Film Capacitors
Datasheet	R75 Series Automotive
Standard Package	72
Manufacturer	KEMET
Series	R75
Packaging	Bulk
Part Status	Active
Capacitance	10µF
Tolerance	±5%
Voltage Rating - AC	220V
Voltage Rating - DC	400V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.634" L x 0.945" W (41.50mm x 24.00mm)
Height - Seated (Max)	1.736" (44.10mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

R75UN24704030J	KEMET, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R75	View
R75TI2330AA30J	KEMET, 0.033µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75MI32204030J	KEMET, 0.22µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75GR44704030J	KEMET, 4.7µF Film Capacitor 90V 160V Polypropylene (PP), Metallized Radial, R75	View
R75MN41504030J	KEMET, 1.5µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75MR42204040J	KEMET, 2.2µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75TI2120AA30J	KEMET, 0.012µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75IF23304000J	KEMET, 0.033µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial, R75	View
R75MI33304030J	KEMET, 0.33µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75QI2470500EJ	KEMET, 0.047µF Film Capacitor 250V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75PD1470Z340J	KEMET, 4700pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75QD1220Z330J	KEMET, 2200pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View

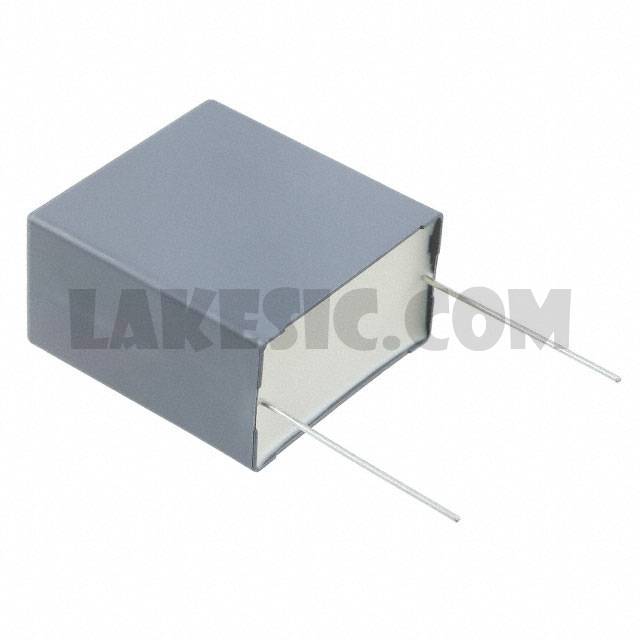

R75MW51004030J

Part NumberR75MW51004030J
