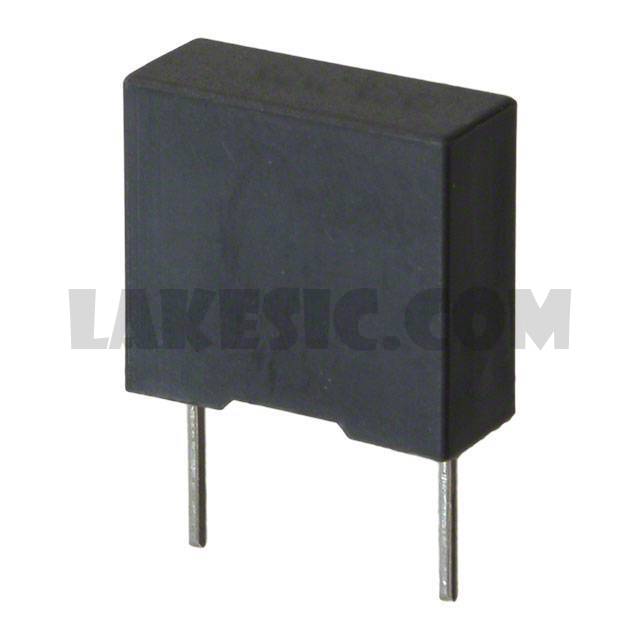

Categories	Capacitors / Film Capacitors
Datasheet	R75 Series Automotive
Standard Package	1500
Manufacturer	KEMET
Series	R75
Packaging	Bulk
Part Status	Active
Capacitance	6800pF
Tolerance	±5%
Voltage Rating - AC	250V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.394" L x 0.157" W (10.00mm x 4.00mm)
Height - Seated (Max)	0.358" (9.10mm)
Termination	PC Pins
Lead Spacing	0.295" (7.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-
