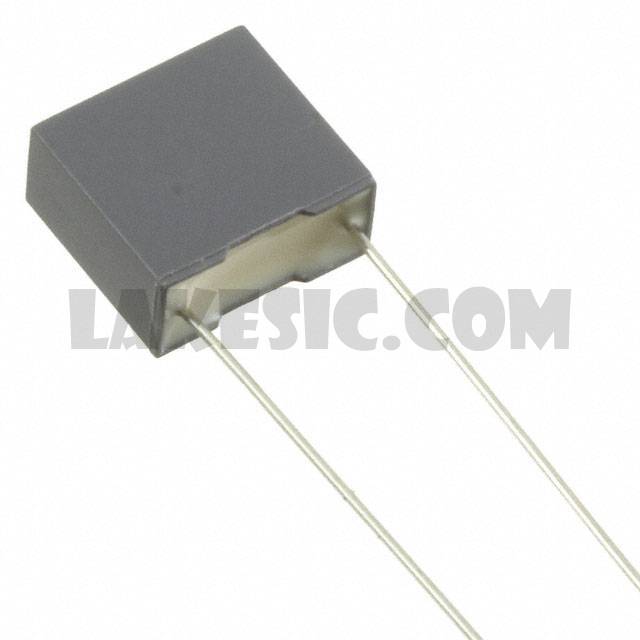

Categories	Capacitors / Film Capacitors
Datasheet	R75 Series Automotive
Standard Package	1000
Manufacturer	KEMET
Series	R75
Packaging	Bulk
Part Status	Active
Capacitance	4700pF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.394" L x 0.197" W (10.00mm x 5.00mm)
Height - Seated (Max)	0.417" (10.60mm)
Termination	PC Pins
Lead Spacing	0.295" (7.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R75MD2100AA40J	KEMET, 10000pF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75TR32204040J	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75QD1120Z330J	KEMET, 1200pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75MR41004040J	KEMET, 1µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75MD2330Z3B0J	KEMET, 0.033µF Film Capacitor 200V 400V Polypropylene (PP), Metallized Radial, R75	View
R75TI1560AA30J	KEMET, 5600pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75GD310050B0J	KEMET, 0.1µF Film Capacitor 70V 160V Polypropylene (PP), Metallized Radial, R75	View
R75IN42204040J	KEMET, 2.2µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial, R75	View
R75TI21504030J	KEMET, 0.015µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75PI31004030J	KEMET, 0.1µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75TR31004040J	KEMET, 0.1µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75PF1470AA01J	KEMET, 4700pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View

R75QD1470Z330J

Part NumberR75QD1470Z330J
