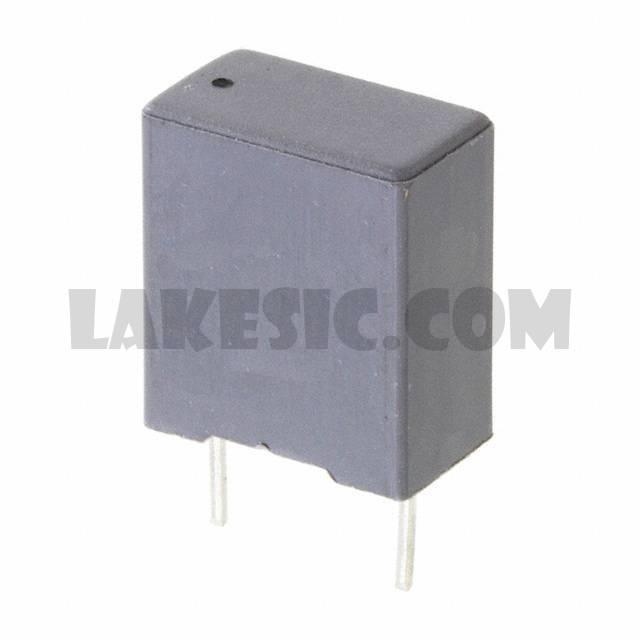

Categories	Capacitors / Film Capacitors
Datasheet	R75 Series Automotive
Standard Package	1000
Manufacturer	KEMET
Series	R75
Packaging	Bulk
Part Status	Active
Capacitance	8200pF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.413" L x 0.236" W (10.50mm x 6.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Termination	PC Pins
Lead Spacing	0.295" (7.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R75QN32204000J	KEMET, 0.22µF Film Capacitor 250V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75UI2150CK70J	KEMET, 0.015µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R75	View
R75GI3220AA00J	KEMET, 0.22µF Film Capacitor 90V 160V Polypropylene (PP), Metallized Radial, R75	View
R75TI2120AA30J	KEMET, 0.012µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75UN21004030J	KEMET, 10000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R75	View
R75QW41504000J	KEMET, 1.5µF Film Capacitor 250V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75MI3100AA30K	KEMET, 0.1µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75TI1560AA30J	KEMET, 5600pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75PD1470Z340J	KEMET, 4700pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75PR41504030J	KEMET, 1.5µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75TI21504030J	KEMET, 0.015µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75MN33904030J	KEMET, 0.39µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View

R75QD1820AA30J

Part NumberR75QD1820AA30J
