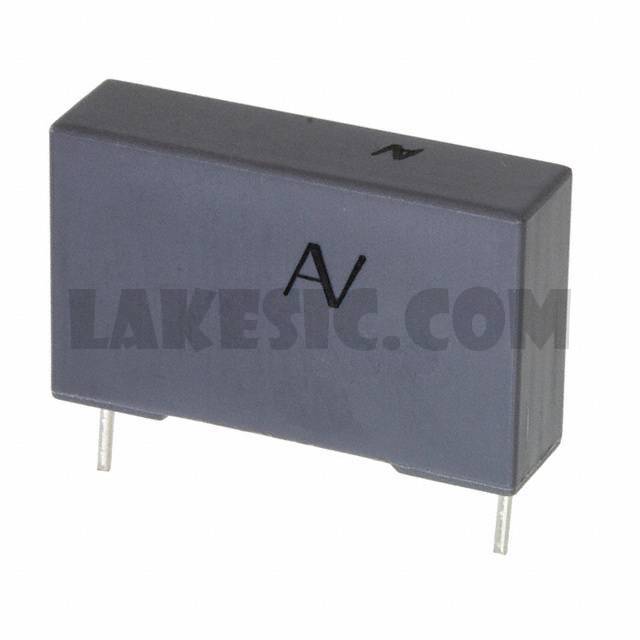

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	700
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.22µF
Tolerance	±10%
Voltage Rating - AC	250V
Voltage Rating - DC	400V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.043" L x 0.276" W (26.50mm x 7.00mm)
Height - Seated (Max)	0.630" (16.00mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76UN1220SE00J	KEMET, 2200pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76PD1220SE00K	KEMET, 2200pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R76	View
R76MD2220SE30J	KEMET, 0.022µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76MI2470SE30K	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76MI24704030J	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76QI23305040J	KEMET, 0.033µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PD2100SE30J	KEMET, 10000pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R76	View
R76PW42204030J	KEMET, 2.2µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76MI32204030J	KEMET, 0.22µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76IN4100SE30J	KEMET, 1µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, R76	View
R76QF1220SE00J	KEMET, 2200pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QR3220SE30K	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View

R76MN3220SE30K

Part NumberR76MN3220SE30K
