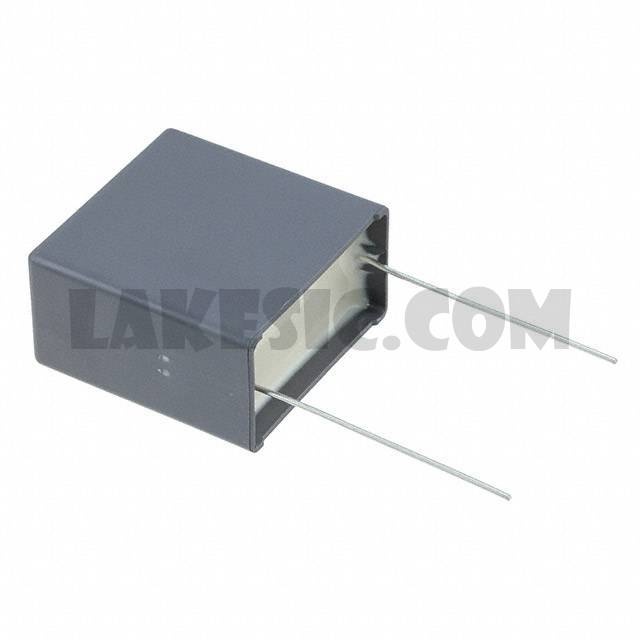

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	128
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	1µF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.260" L x 0.709" W (32.00mm x 18.00mm)
Height - Seated (Max)	1.303" (33.10mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-
