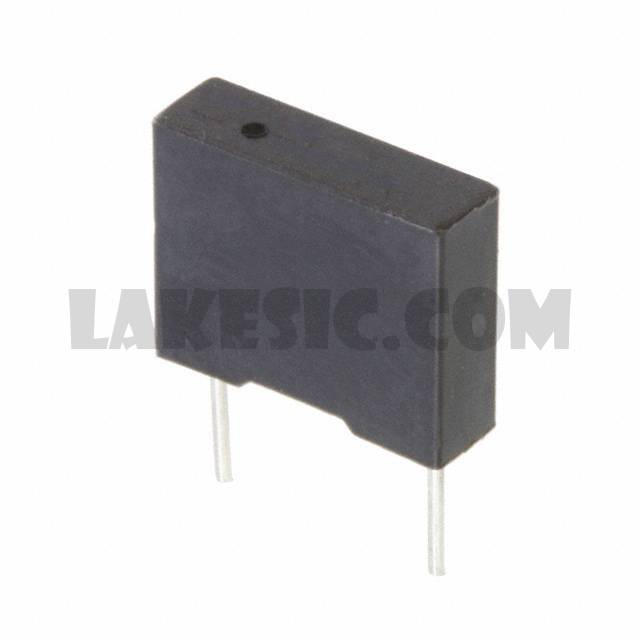

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	1500
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	470pF
Tolerance	±10%
Voltage Rating - AC	400V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.394" L x 0.118" W (10.00mm x 3.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Termination	PC Pins
Lead Spacing	0.295" (7.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76MI24704030J	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76QR3100SE40J	KEMET, 0.1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QN31204030J	KEMET, 0.12µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QI21004030J	KEMET, 10000pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PI24704030J	KEMET, 0.047µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76UI11004030J	KEMET, 1000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76PW42204030J	KEMET, 2.2µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76PI22204030J	KEMET, 0.022µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76II3220SE30K	KEMET, 0.22µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, R76	View
R76UI04704000J	KEMET, 470pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76PR34704030J	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76PN32204030J	KEMET, 0.22µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View

R76QD0470SE00K

Part NumberR76QD0470SE00K
