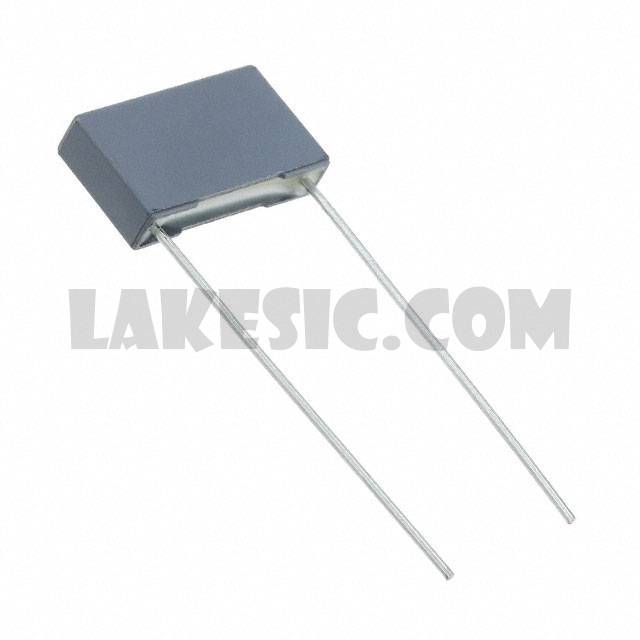

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	1500
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	600V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.157" W (18.00mm x 4.00mm)
Height - Seated (Max)	0.398" (10.10mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76UR26804030J	KEMET, 0.068µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76MR3470SE30K	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76PI3100SE30J	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76PI23304030J	KEMET, 0.033µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76ID2470SE30J	KEMET, 0.047µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, R76	View
R76MN3220SE30K	KEMET, 0.22µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76IN4100SE30J	KEMET, 1µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, R76	View
R76TR32204030J	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76TI14704040J	KEMET, 4700pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76TI22204040J	KEMET, 0.022µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76UN1220SE00J	KEMET, 2200pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76MN32204030J	KEMET, 0.22µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View

R76QI21004040J

Part NumberR76QI21004040J
