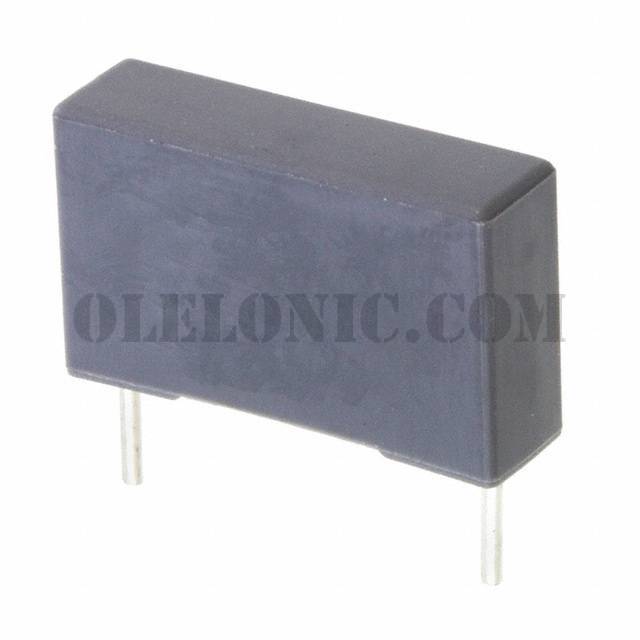

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	2000
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	1000pF
Tolerance	±5%
Voltage Rating - AC	700V
Voltage Rating - DC	2000V (2kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.157" W (18.00mm x 4.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76PD1220SE00J	KEMET, 2200pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R76	View
R76UN23304040J	KEMET, 0.033µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI12204030J	KEMET, 2200pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UR24704030J	KEMET, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UN22204040J	KEMET, 0.022µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76QN24704030J	KEMET, 0.047µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76UW3100SE30K	KEMET, 0.1µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76QI2220JE40J	KEMET, 0.022µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QF1220SE00J	KEMET, 2200pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76MI24704030J	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76TR31004030J	KEMET, 0.1µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76ID2470SE30J	KEMET, 0.047µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, R76	View

R76UI1100SE30J

Part NumberR76UI1100SE30J
