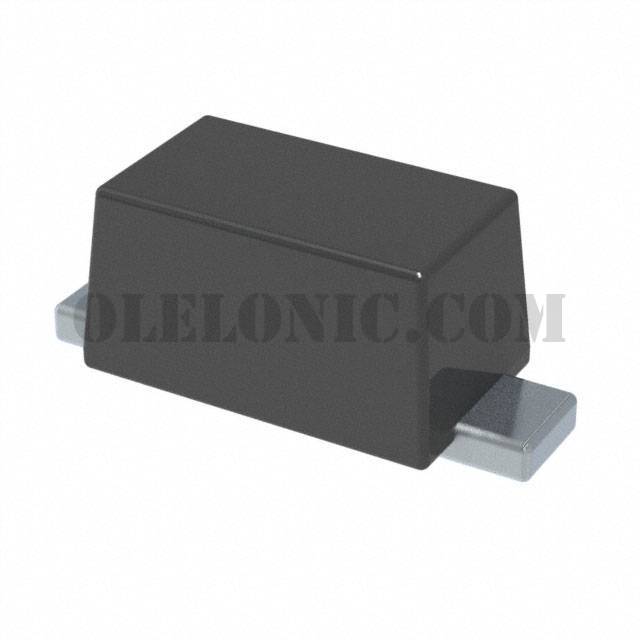

RB520G-30-TP

RB520G-30-TP

Part NumberRB520G-30-TP

ManufacturerMicro Commercial Co

DescriptionDIODE SCHOTTKY 30V 100MA SOD723

DatasheetRB520G-30

Package / CaseSOD-723

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 100mA Surface Mount SOD-723

To learn about the specification of RB520G-30-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RB520G-30-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RB520G-30-TP.
We are offering RB520G-30-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RB520G-30-TP - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	RB520G-30
Standard Package	1
Manufacturer	Micro Commercial Co
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	450mV @ 10mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	500nA @ 10V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	SOD-723
Supplier Device Package	SOD-723
Operating Temperature - Junction	125°C (Max)
Base Part Number	RB520G-30
