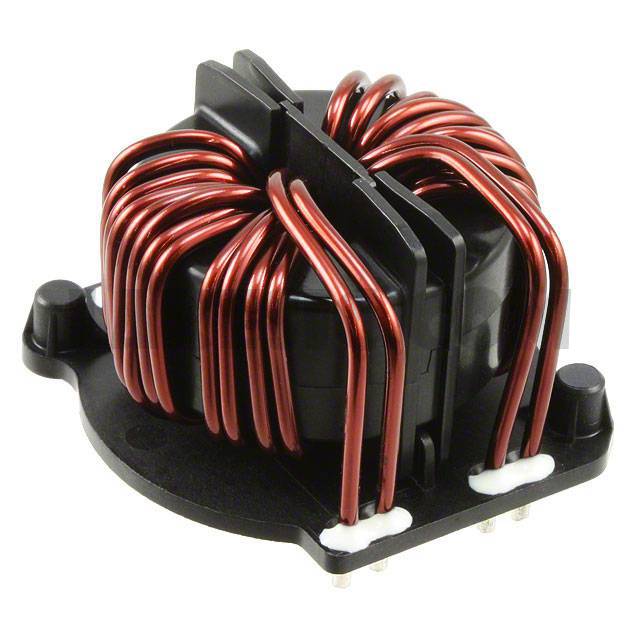

RB6122-36-0M5

Part NumberRB6122-36-0M5

ManufacturerSchaffner EMC Inc.

DescriptionCMC 450UH 36A 2LN TH

DatasheetRB Series Datasheet

Package / CaseHorizontal, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description450µH @ 1kHz 2 Line Common Mode Choke Through Hole 36A DCR 1.5mOhm (Typ)

To learn about the specification of RB6122-36-0M5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RB6122-36-0M5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RB6122-36-0M5.
We are offering RB6122-36-0M5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RB6122-36-0M5 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

RB Series Datasheet

Standard Package

Manufacturer

Schaffner EMC Inc.

Series

Packaging

Bulk

Part Status

Active

Filter Type

Power Line

Number of Lines

Inductance @ Frequency

450µH @ 1kHz

Current Rating (Max)

36A

DC Resistance (DCR) (Max)

1.5mOhm (Typ)

Voltage Rating - DC

1000V (1kV)

Voltage Rating - AC

600V

Operating Temperature

-40°C ~ 125°C

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

2.402" L x 2.276" W (61.00mm x 57.80mm)

Height (Max)

1.496" (38.00mm)

Package / Case

Horizontal, 4 PC Pin
