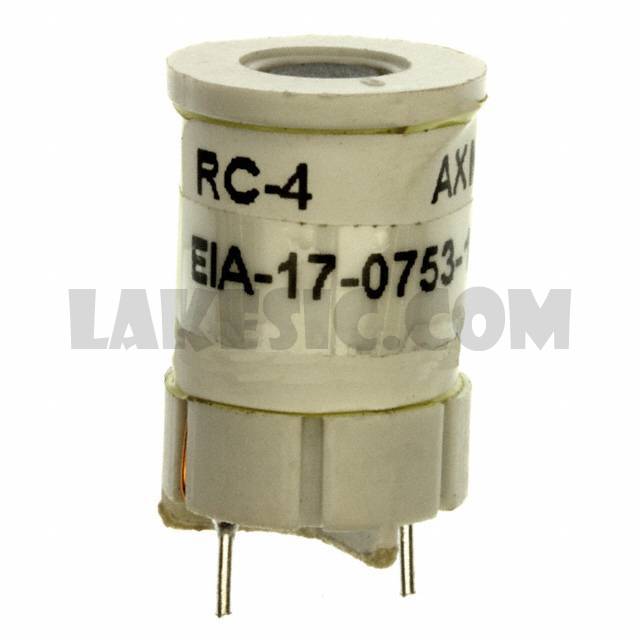

RC-4


RC-4

Part NumberRC-4

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

RC-4 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerTriad Magnetics
SeriesRC
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance1.5mH
Tolerance±10%
Current Rating (Amps)500mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)1.53Ohm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 85°C
Inductance Frequency - Test10kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.600" Dia (15.24mm)
Height - Seated (Max)0.930" (23.62mm)
