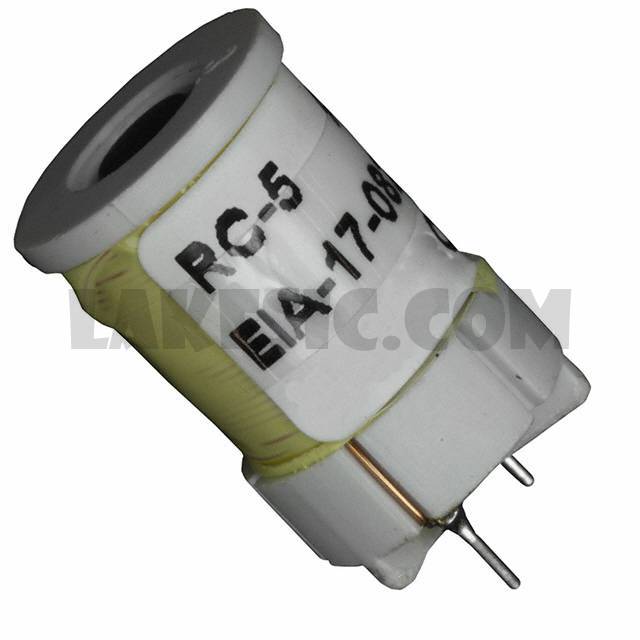

RC-5


RC-5

Part NumberRC-5

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

RC-5 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerTriad Magnetics
SeriesRC
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance915µH
Tolerance±10%
Current Rating (Amps)625mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)1Ohm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 85°C
Inductance Frequency - Test10kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.600" Dia (15.24mm)
Height - Seated (Max)0.930" (23.62mm)
