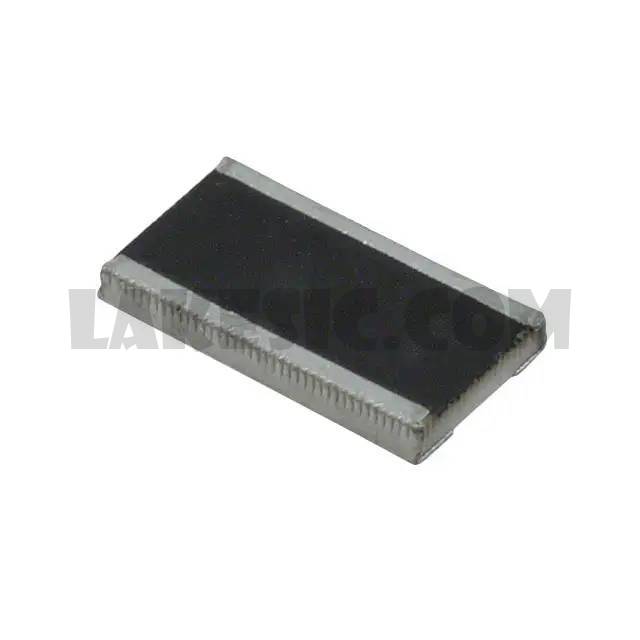

RCL12258K20JNEG

Part NumberRCL12258K20JNEG

ManufacturerVishay Dale

DescriptionRES SMD 8.2K OHM 2W 2512 WIDE

DatasheetRCL e3 Series Datasheet

Package / CaseWide 2512 (6432 Metric), 1225

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description8.2 kOhms ±5% 2W Chip Resistor Wide 2512 (6432 Metric), 1225 Automotive AEC-Q200 Thick Film

To learn about the specification of RCL12258K20JNEG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RCL12258K20JNEG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RCL12258K20JNEG.
We are offering RCL12258K20JNEG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RCL12258K20JNEG - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	RCL e3 Series Datasheet
Standard Package	1
Manufacturer	Vishay Dale
Series	RCL
Packaging	Cut Tape (CT)
Part Status	Active
Resistance	8.2 kOhms
Tolerance	±5%
Power (Watts)	2W
Composition	Thick Film
Features	Automotive AEC-Q200
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	Wide 2512 (6432 Metric), 1225
Supplier Device Package	1225
Size / Dimension	0.126" L x 0.248" W (3.20mm x 6.30mm)
Height - Seated (Max)	0.031" (0.80mm)
Number of Terminations	2
Failure Rate	-
