RFN10T2D


RFN10T2D

Part NumberRFN10T2D

Manufacturer

Description

Datasheet

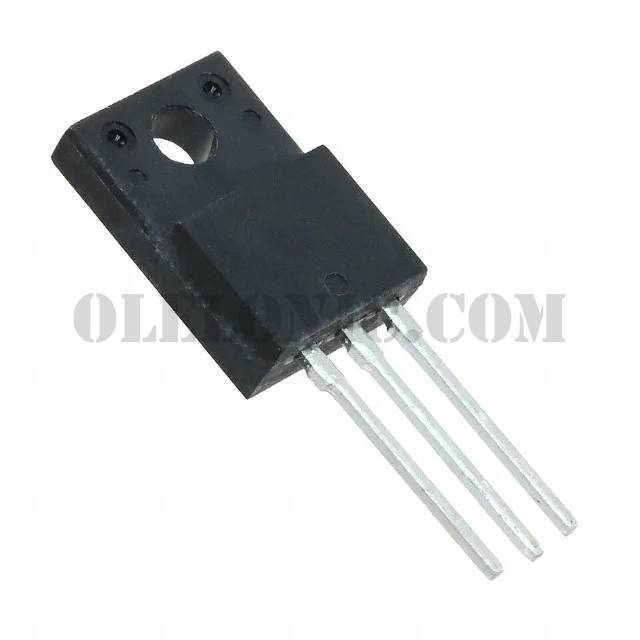

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

RFN10T2D - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet
Standard Package500
ManufacturerRohm Semiconductor
Series-
PackagingBulk
Part StatusNot For New Designs
Diode Configuration1 Pair Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)200V
Current - Average Rectified (Io) (per Diode)5A
Voltage - Forward (Vf) (Max) @ If980mV @ 5A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)25ns
Current - Reverse Leakage @ Vr10µA @ 200V
Operating Temperature - Junction150°C (Max)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FN
