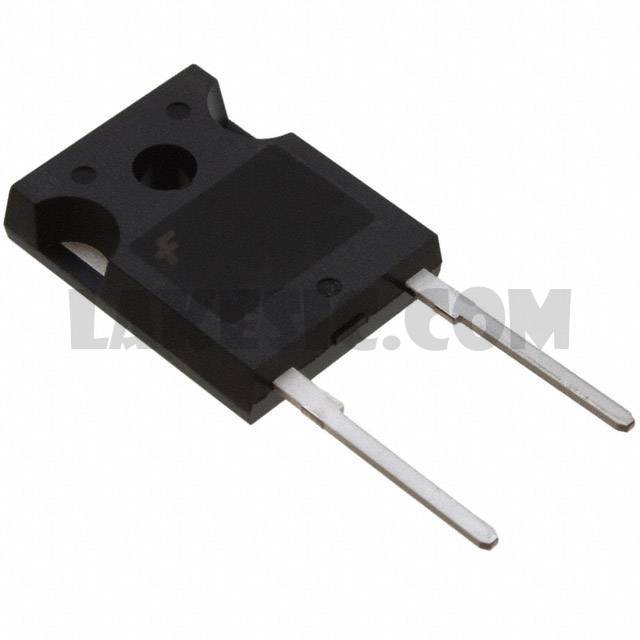

RHRG30120

RHRG30120

Part NumberRHRG30120

ManufacturerON Semiconductor

DescriptionDIODE GEN PURP 1.2KV 30A TO247

DatasheetRHRG30120

Package / CaseTO-247-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1200V 30A Through Hole TO-247-2

To learn about the specification of RHRG30120, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RHRG30120 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RHRG30120.
We are offering RHRG30120 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RHRG30120 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	RHRG30120
Standard Package	450
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	3.2V @ 30A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	85ns
Current - Reverse Leakage @ Vr	250µA @ 1200V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	TO-247-2
Supplier Device Package	TO-247-2
Operating Temperature - Junction	-65°C ~ 175°C
