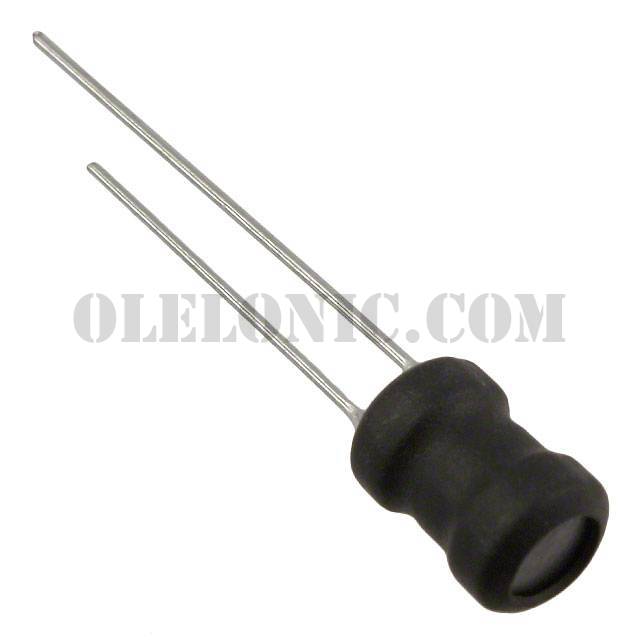

RLB0712-220KL

RLB0712-220KL

Part NumberRLB0712-220KL

ManufacturerBourns Inc.

DescriptionFIXED IND 22UH 700MA 120 MOHM TH

DatasheetRLB Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Unshielded Wirewound Inductor 700mA 120mOhm Max Radial, Vertical Cylinder

To learn about the specification of RLB0712-220KL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RLB0712-220KL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RLB0712-220KL.
We are offering RLB0712-220KL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RLB0712-220KL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	RLB Series
Standard Package	400
Manufacturer	Bourns Inc.
Series	RLB
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±10%
Current Rating (Amps)	700mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	120mOhm Max
Q @ Freq	20 @ 2.52MHz
Frequency - Self Resonant	9MHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.264" Dia (6.70mm)
Height - Seated (Max)	0.433" (11.00mm)
Base Part Number	RLB0712
