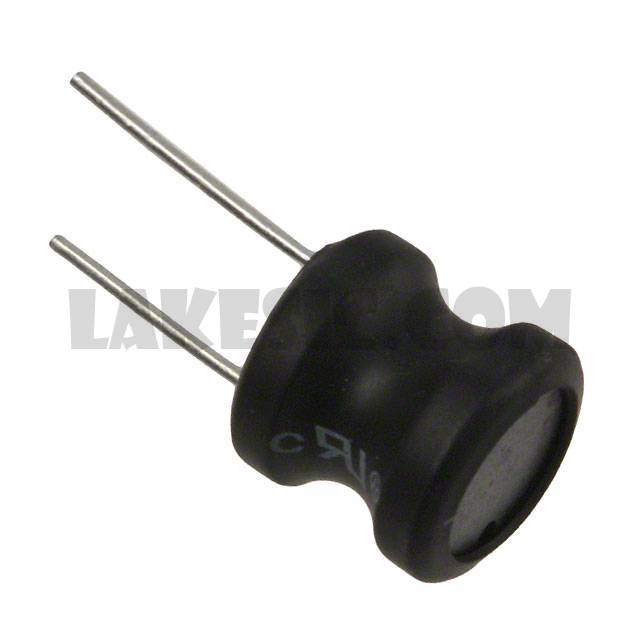

RLB1314-471KL


RLB1314-471KL

Part NumberRLB1314-471KL

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

RLB1314-471KL - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package130
ManufacturerBourns Inc.
SeriesRLB
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance470µH
Tolerance±10%
Current Rating (Amps)460mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)510mOhm Max
Q @ Freq30 @ 796kHz
Frequency - Self Resonant2.3MHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.461" Dia (11.70mm)
Height - Seated (Max)0.512" (13.00mm)
Base Part NumberRLB1314
