RN112-0.5-02-27M
RN112-0.5-02-27M

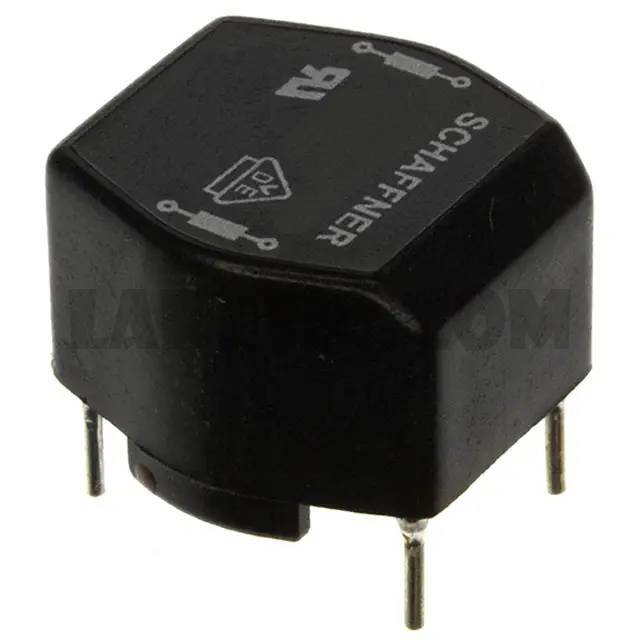

Part Number RN112-0.5-02-27M Description CMC 27MH 500MA 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 27mH @ 10kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1.2Ohm (Typ)
To learn about the specification of RN112-0.5-02-27M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RN112-0.5-02-27M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RN112-0.5-02-27M.
We are offering RN112-0.5-02-27M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RN112-0.5-02-27M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RN Series Datasheet Standard Package 500 Manufacturer Schaffner EMC Inc. Series RN Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 27mH @ 10kHz Current Rating (Max) 500mA DC Resistance (DCR) (Max) 1.2Ohm (Typ) Voltage Rating - DC - Voltage Rating - AC 300V Operating Temperature -40°C ~ 100°C Ratings - Approvals ENEC, UR, VDE Features - Mounting Type Through Hole Size / Dimension 0.697" L x 0.673" W (17.70mm x 17.10mm) Height (Max) 0.508" (12.90mm) Package / Case Horizontal, 4 PC Pin
