RN122-2-02-5M0
RN122-2-02-5M0

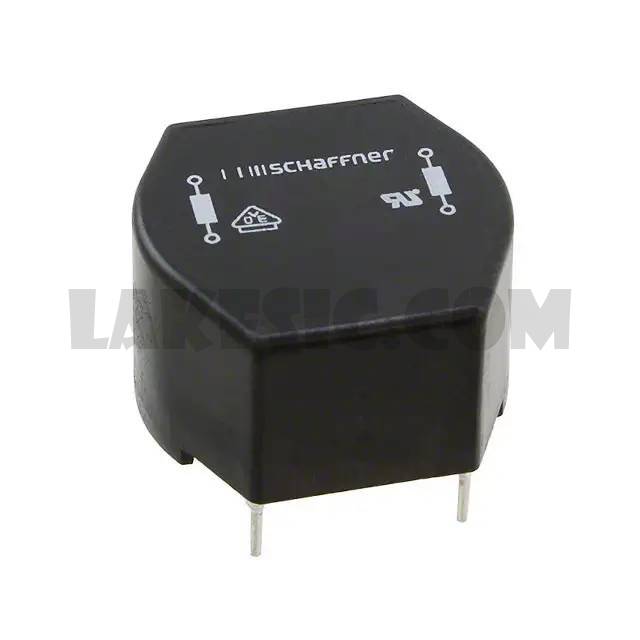

Part Number RN122-2-02-5M0 Description CMC 5MH 2A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 5mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 140mOhm (Typ)
To learn about the specification of RN122-2-02-5M0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RN122-2-02-5M0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RN122-2-02-5M0.
We are offering RN122-2-02-5M0 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RN122-2-02-5M0 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RN Series Datasheet Standard Package 200 Manufacturer Schaffner EMC Inc. Series RN Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 5mH @ 10kHz Current Rating (Max) 2A DC Resistance (DCR) (Max) 140mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 300V Operating Temperature -40°C ~ 100°C Ratings - Approvals ENEC, UR, VDE Features - Mounting Type Through Hole Size / Dimension 0.886" L x 0.846" W (22.50mm x 21.50mm) Height (Max) 0.531" (13.50mm) Package / Case Horizontal, 4 PC Pin
RN122-2-02-5M0 - Related ProductsMore >>
RN112-0.4-02-27M Schaffner EMC Inc., 27mH @ 10kHz 2 Line Common Mode Choke Through Hole 400mA DCR 1.4Ohm (Typ), RN
View
RN222-2-02-6M8 Schaffner EMC Inc., 6.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 156mOhm (Typ), RN
View
RN116-1.7-02-4M0 Schaffner EMC Inc., 4mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.7A DCR 87mOhm (Typ), RN
View
RN112-2-02-1M0 Schaffner EMC Inc., 1mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 70mOhm (Typ), RN
View
RN214-1.2-02-10M Schaffner EMC Inc., 10mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.2A DCR 195mOhm (Typ), RN
View
RN114-0.5-02-39M Schaffner EMC Inc., 39mH @ 10kHz 2 Line Common Mode Choke Through Hole 500mA DCR 830mOhm (Typ), RN
View
RN212-0.6-02-15M Schaffner EMC Inc., 15mH @ 10kHz 2 Line Common Mode Choke Through Hole 600mA DCR 490mOhm (Typ), RN
View
RN114-3-02-2M0 Schaffner EMC Inc., 2mH @ 10kHz 2 Line Common Mode Choke Through Hole 3A DCR 52mOhm (Typ), RN
View
RN232-0.6-02-47M Schaffner EMC Inc., 47mH @ 10kHz 2 Line Common Mode Choke Through Hole 600mA DCR 1.3Ohm (Typ), RN
View
RN112-0.4-02-39M Schaffner EMC Inc., 39mH @ 10kHz 2 Line Common Mode Choke Through Hole 400mA DCR 1.5Ohm (Typ), RN
View
RN152-6-02-3M9 Schaffner EMC Inc., 3.9mH @ 10kHz 2 Line Common Mode Choke Through Hole 6A DCR 42mOhm (Typ), RN
View
RN204-1.5-02-1M6 Schaffner EMC Inc., 1.6mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 96mOhm (Typ), RN
View
