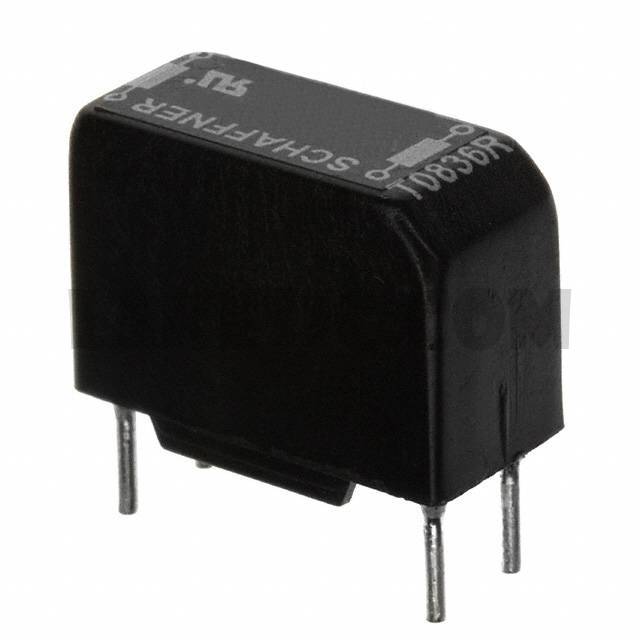

RN202-1.5-02-1M6

RN202-1.5-02-1M6

Part NumberRN202-1.5-02-1M6

ManufacturerSchaffner EMC Inc.

DescriptionCMC 1.6MH 1.5A 2LN TH

DatasheetRN Series Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1.6mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 94mOhm (Typ)

To learn about the specification of RN202-1.5-02-1M6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RN202-1.5-02-1M6 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RN202-1.5-02-1M6.
We are offering RN202-1.5-02-1M6 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RN202-1.5-02-1M6 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	RN Series Datasheet
Standard Package	500
Manufacturer	Schaffner EMC Inc.
Series	RN
Packaging	Tray
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	1.6mH @ 10kHz
Current Rating (Max)	1.5A
DC Resistance (DCR) (Max)	94mOhm (Typ)
Voltage Rating - DC	-
Voltage Rating - AC	300V
Operating Temperature	-40°C ~ 100°C
Ratings	-
Approvals	ENEC, UR, VDE
Features	-
Mounting Type	Through Hole
Size / Dimension	0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max)	0.543" (13.80mm)
Package / Case	Vertical, 4 PC Pin
