Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RNE Series Datasheet
Standard Package	1000
Manufacturer	Nichicon
Series	FPCAP, RNE
Packaging	Tape & Box (TB)
Part Status	Active
Type	Polymer
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	12mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	540mA @ 120Hz
Ripple Current @ High Frequency	5.4A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

RNE0E681MDN1KX	Nichicon, 680µF 2.5V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, FPCAP, RNE	View
RNE1C101MDS1PX	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 35mOhm 2000 Hrs @ 105°C, FPCAP, RNE	View
RNE0J122MDN1PX	Nichicon, 1200µF 6.3V Aluminum Polymer Capacitor Radial, Can 10mOhm 2000 Hrs @ 105°C, FPCAP, RNE	View
RNE1C101MDS1	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 35mOhm 2000 Hrs @ 105°C, FPCAP, RNE	View
RNE1A221MDS1PX	Nichicon, 220µF 10V Aluminum Polymer Capacitor Radial, Can 30mOhm 2000 Hrs @ 105°C, FPCAP, RNE	View
RNE1A221MDS1	Nichicon, 220µF 10V Aluminum Polymer Capacitor Radial, Can 30mOhm 2000 Hrs @ 105°C, FPCAP, RNE	View
RNE1C102MDNASQPH	Nichicon, 1000µF 16V Aluminum Polymer Capacitor Radial, Can 10mOhm 5000 Hrs @ 105°C, FPCAP, RNE	View
RNE1C102MDNASQ	Nichicon, 1000µF 16V Aluminum Polymer Capacitor Radial, Can 10mOhm 5000 Hrs @ 105°C, FPCAP, RNE	View
RNE1C102MDNASQPH	Nichicon, 1000µF 16V Aluminum Polymer Capacitor Radial, Can 10mOhm 5000 Hrs @ 105°C, FPCAP, RNE	View
RNE1C101MDS1PX	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 35mOhm 2000 Hrs @ 105°C, FPCAP, RNE	View
RNE1C821MDN1PH	Nichicon, 820µF 16V Aluminum Polymer Capacitor Radial, Can 11mOhm 2000 Hrs @ 105°C, FPCAP, RNE	View
RNE0J271MDS1	Nichicon, 270µF 6.3V Aluminum Polymer Capacitor Radial, Can 11mOhm 2000 Hrs @ 105°C, FPCAP, RNE	View

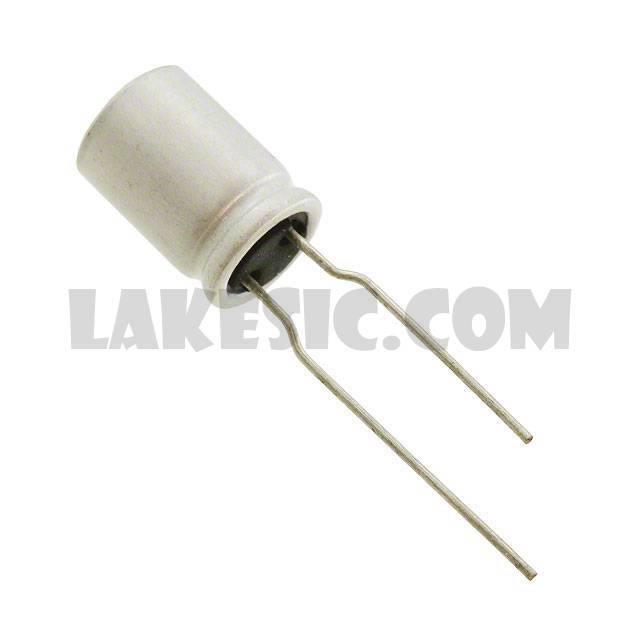

RNE1C471MDN1PX
