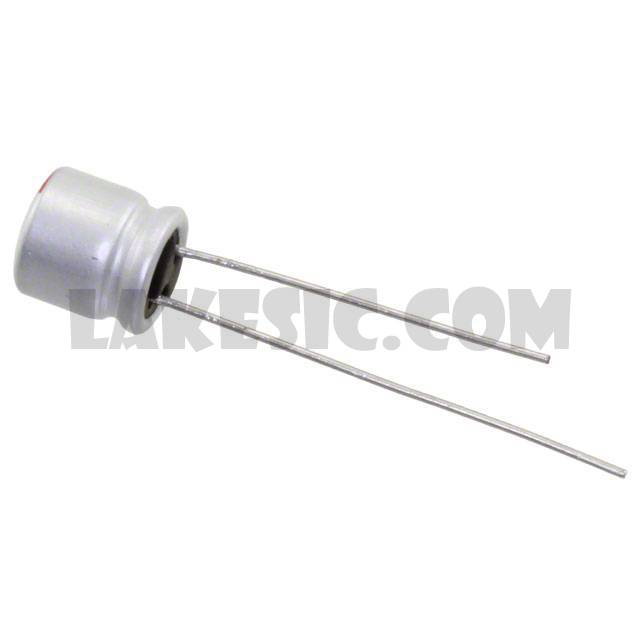

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RNS Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	FPCAP, RNS
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	33µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	49mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	190mA @ 120Hz
Ripple Current @ High Frequency	1.9A @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

RNS1D220MDS1JT	Nichicon, 22µF 20V Aluminum Polymer Capacitor Radial, Can 49mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1D330MDS1JX	Nichicon, 33µF 20V Aluminum Polymer Capacitor Radial, Can 49mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1A221MDN1PH	Nichicon, 220µF 10V Aluminum Polymer Capacitor Radial, Can 10mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1D101MDN1PH	Nichicon, 100µF 20V Aluminum Polymer Capacitor Radial, Can 15mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS0G122MDN1PH	Nichicon, 1200µF 4V Aluminum Polymer Capacitor Radial, Can 10mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1E101MDN1PH	Nichicon, 100µF 25V Aluminum Polymer Capacitor Radial, Can 15mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1C151MDN1PH	Nichicon, 150µF 16V Aluminum Polymer Capacitor Radial, Can 10mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1A330MDS1JT	Nichicon, 33µF 10V Aluminum Polymer Capacitor Radial, Can 49mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS0G122MDN1PH	Nichicon, 1200µF 4V Aluminum Polymer Capacitor Radial, Can 10mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1D330MDS1JX	Nichicon, 33µF 20V Aluminum Polymer Capacitor Radial, Can 49mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1C101MDN1KX	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 21mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1C680MDN1KX	Nichicon, 68µF 16V Aluminum Polymer Capacitor Radial, Can 25mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View

RNS1C330MDS1

Part NumberRNS1C330MDS1
