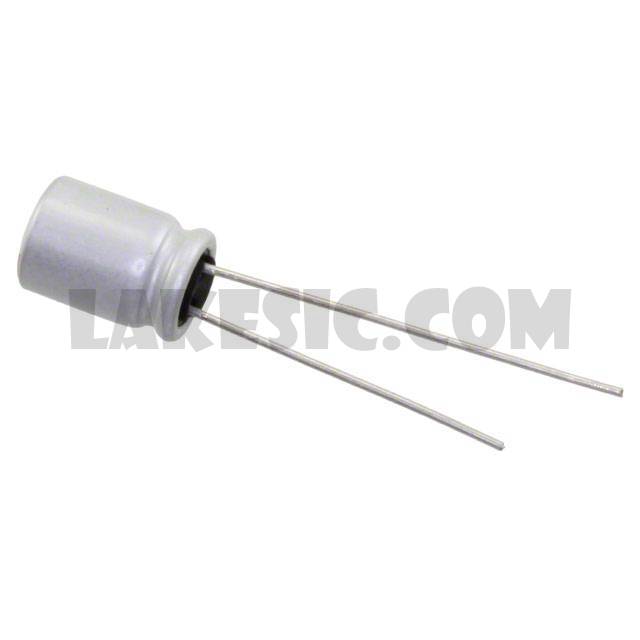

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RNS Series Datasheet
Standard Package	2000
Manufacturer	Nichicon
Series	FPCAP, RNS
Packaging	Tape & Box (TB)
Part Status	Active
Type	Polymer
Capacitance	33µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	49mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	220mA @ 120Hz
Ripple Current @ High Frequency	2.2A @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
